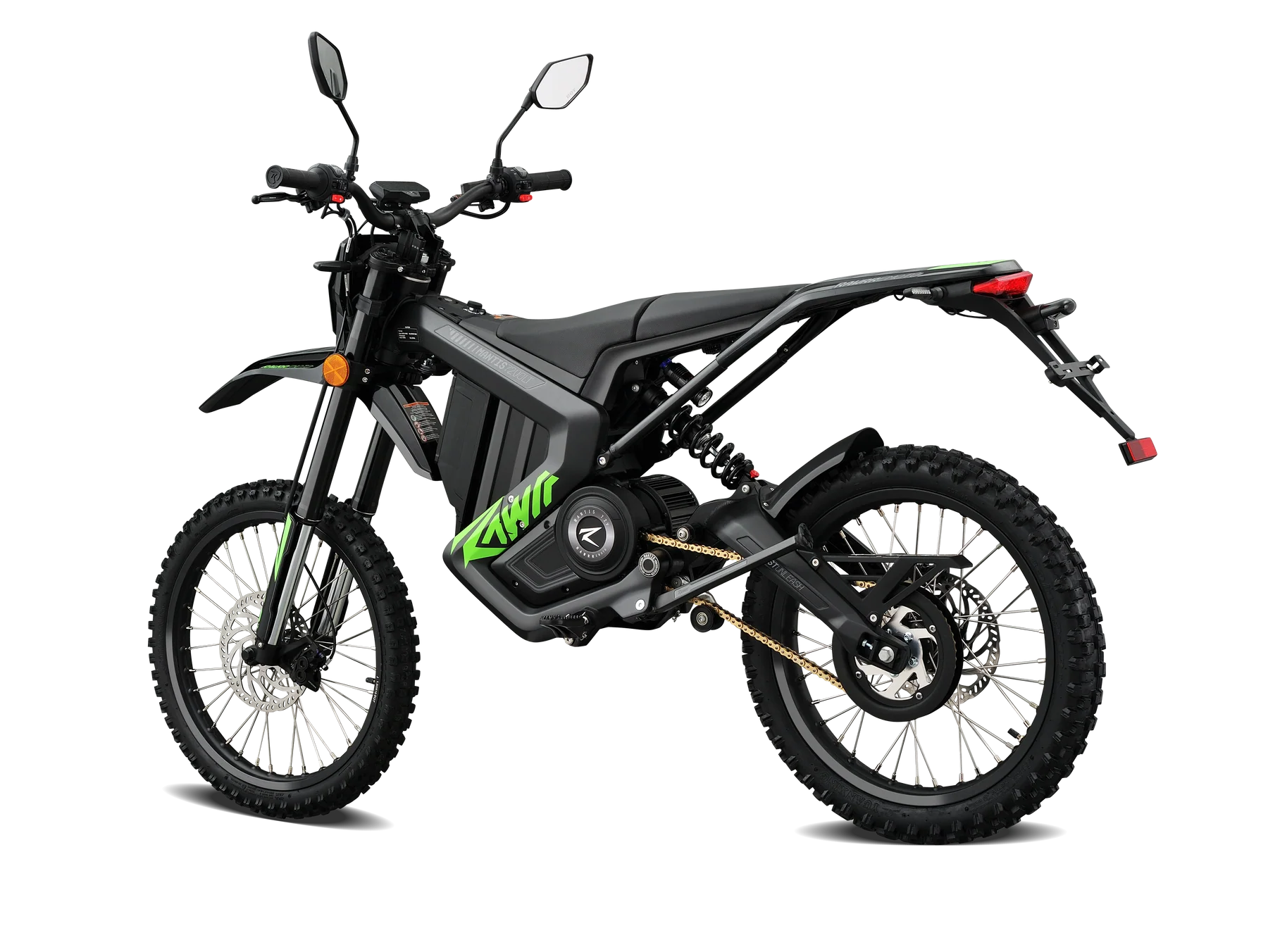

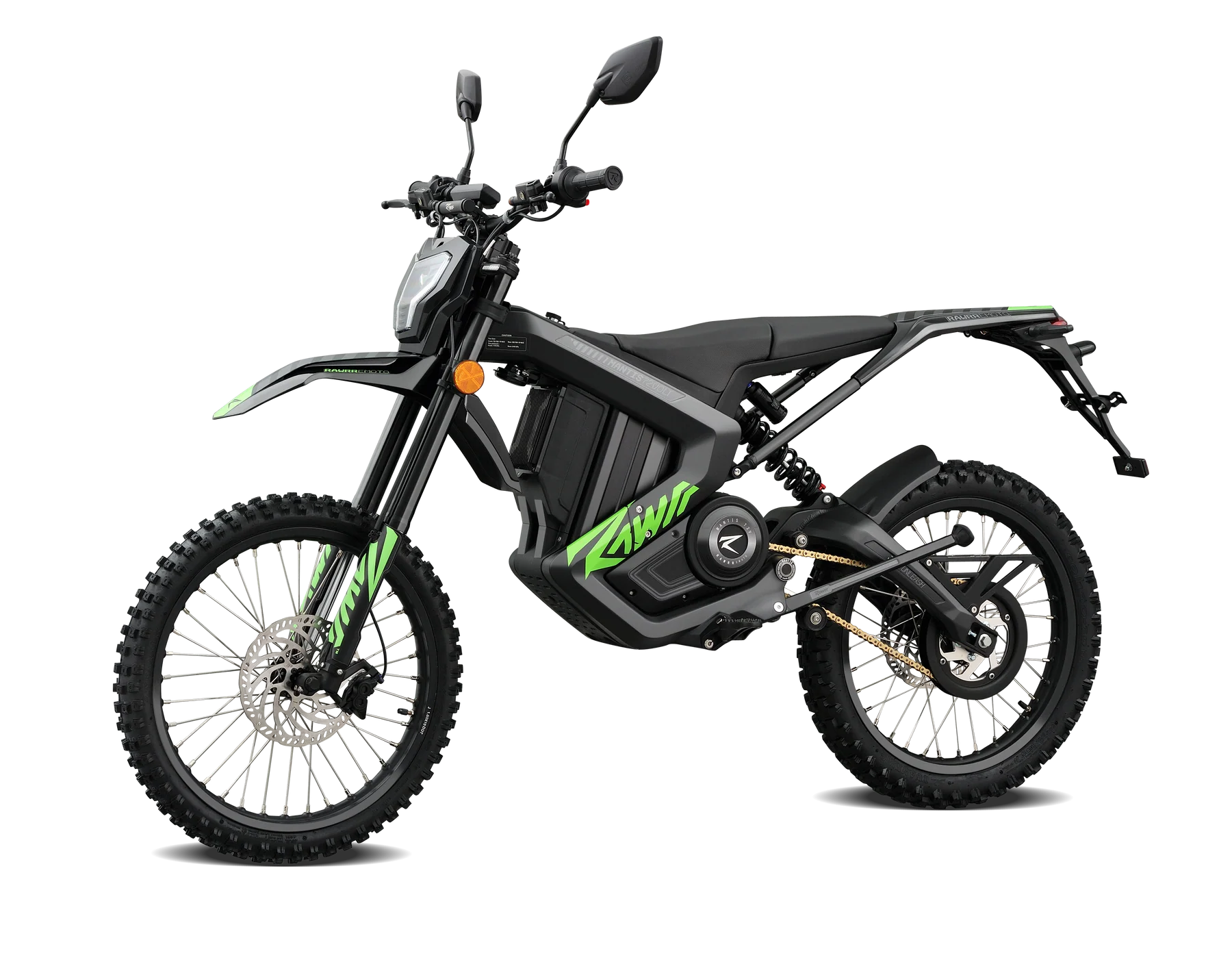

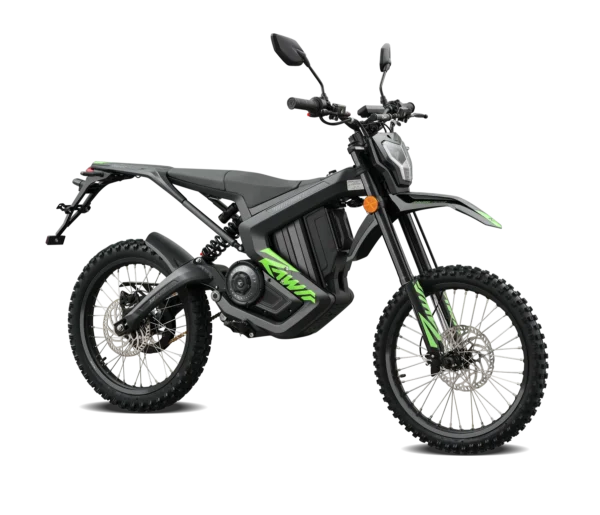

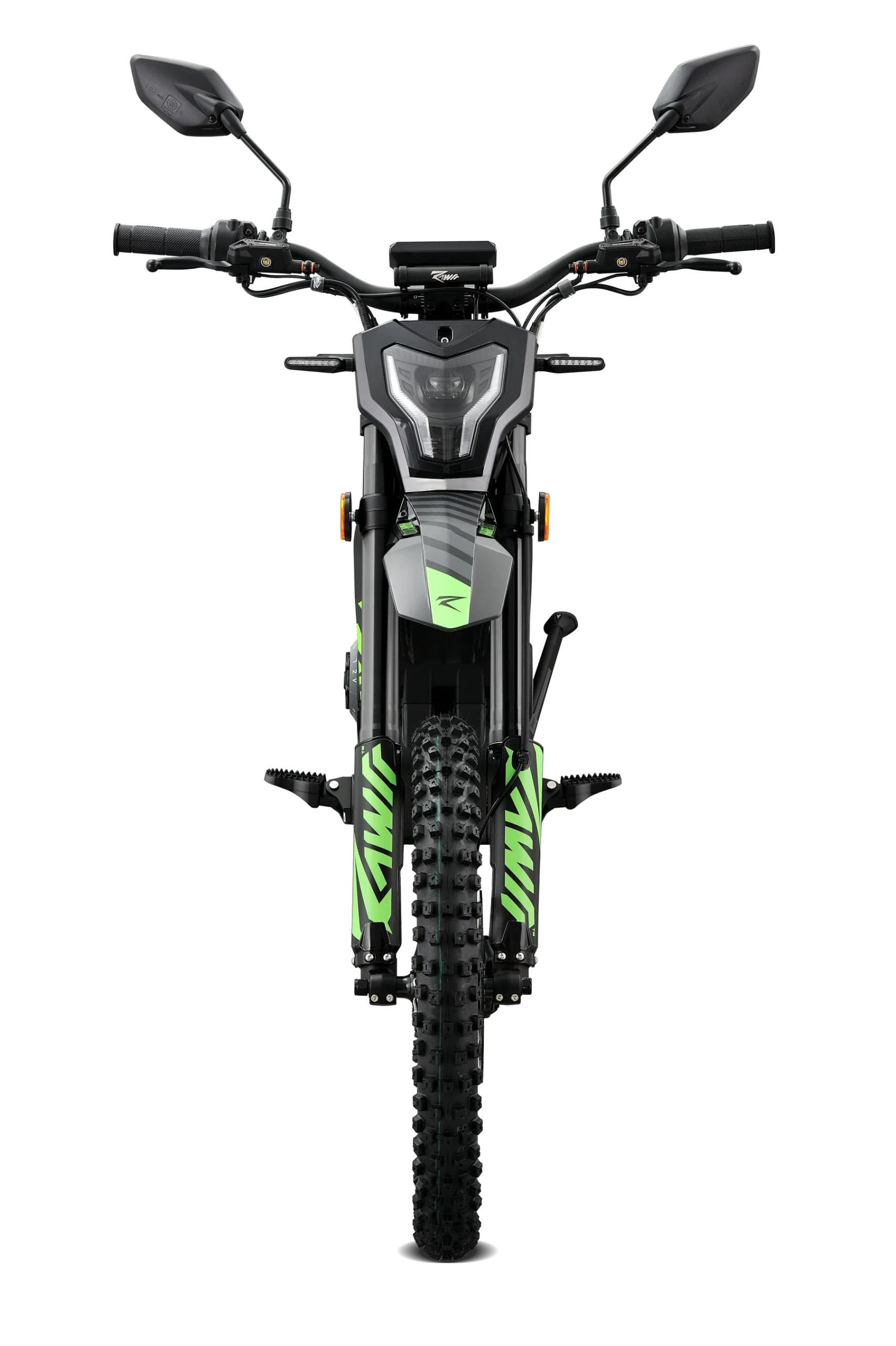

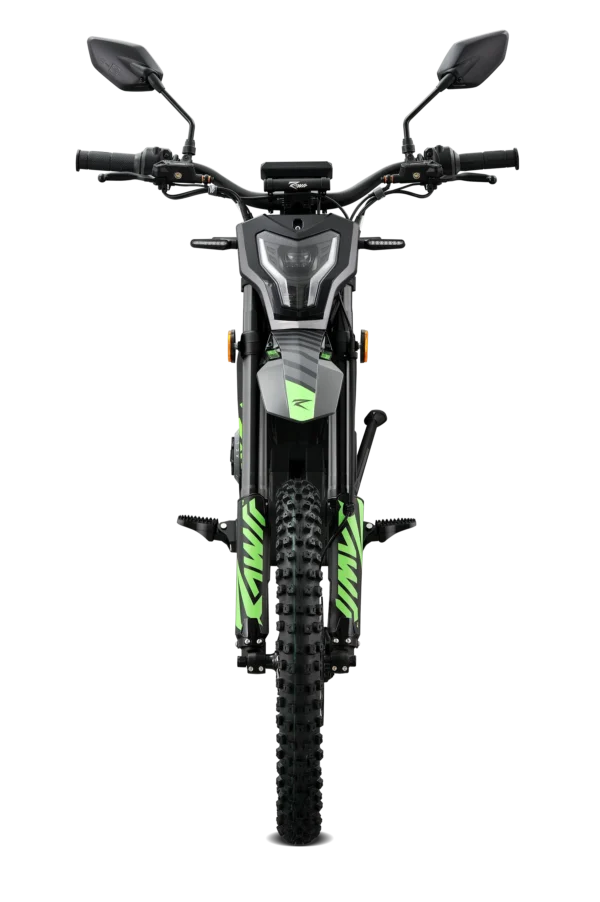

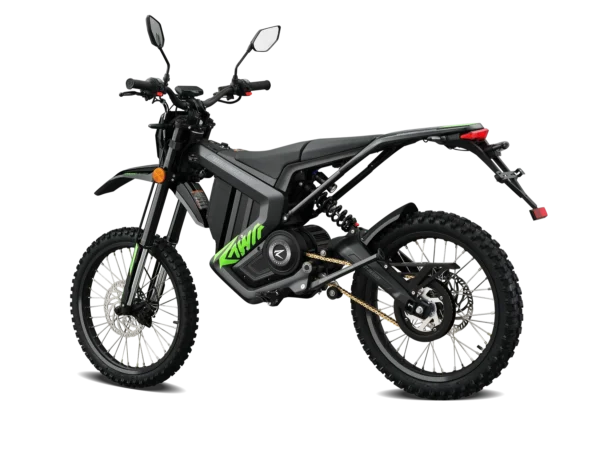

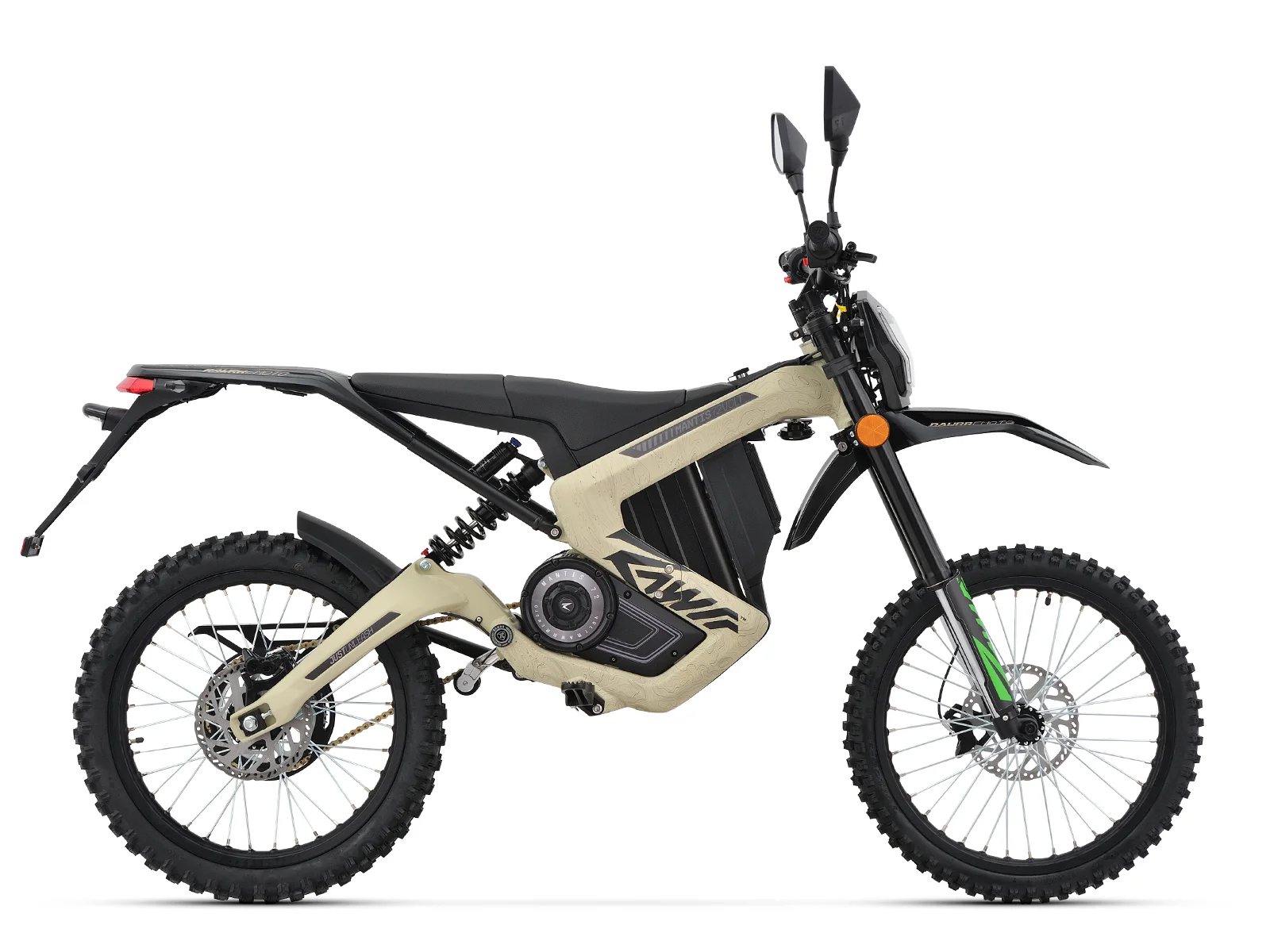

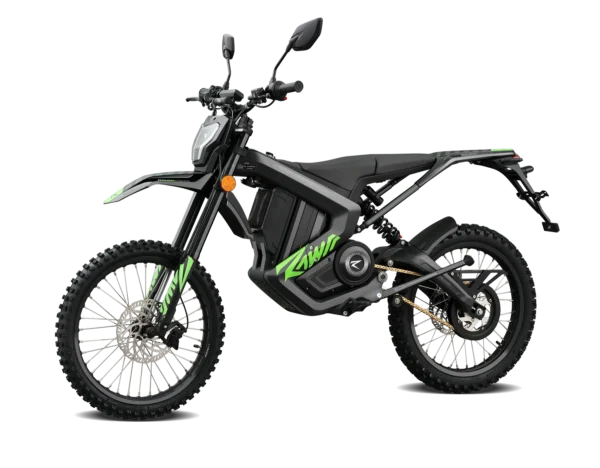

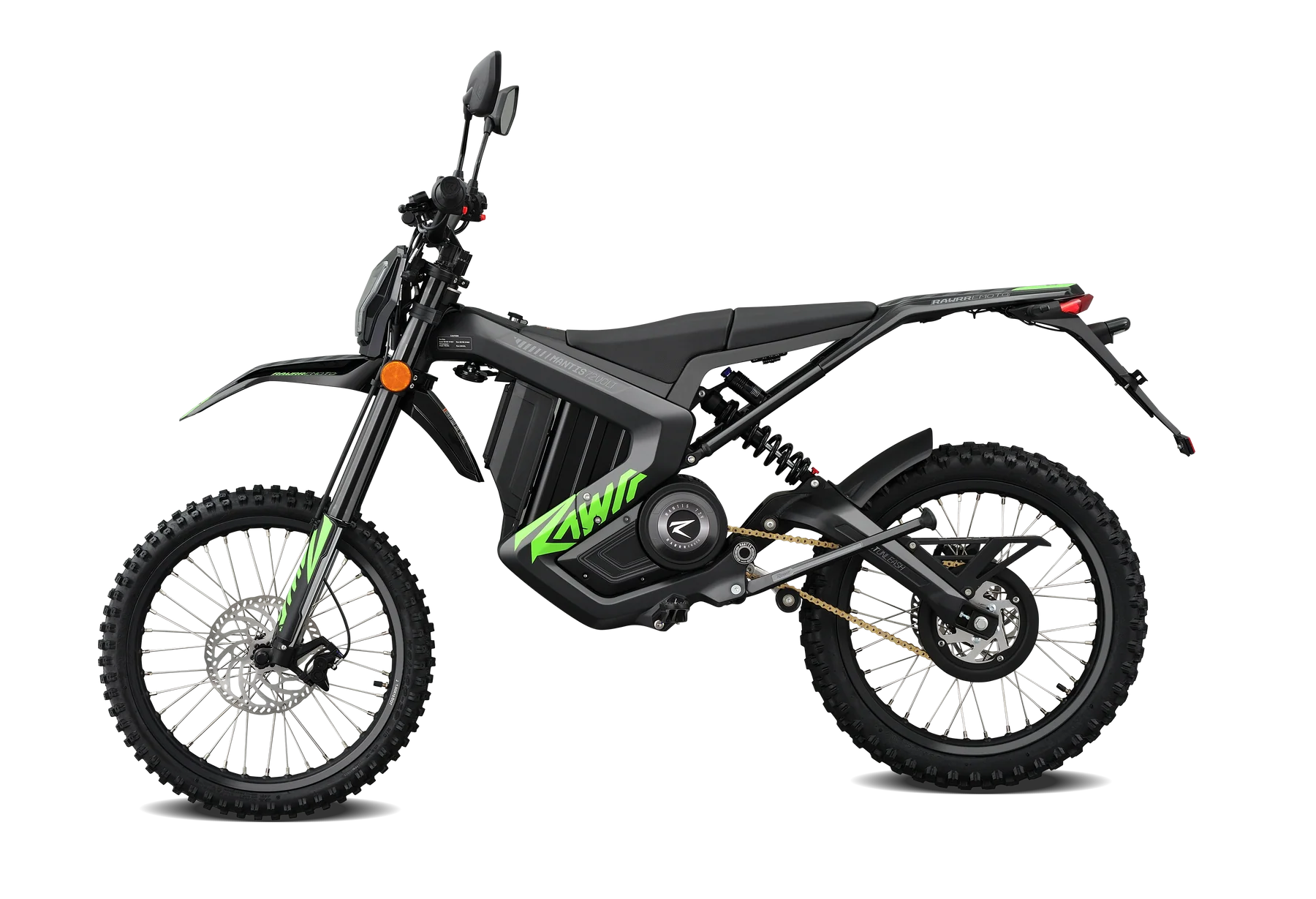

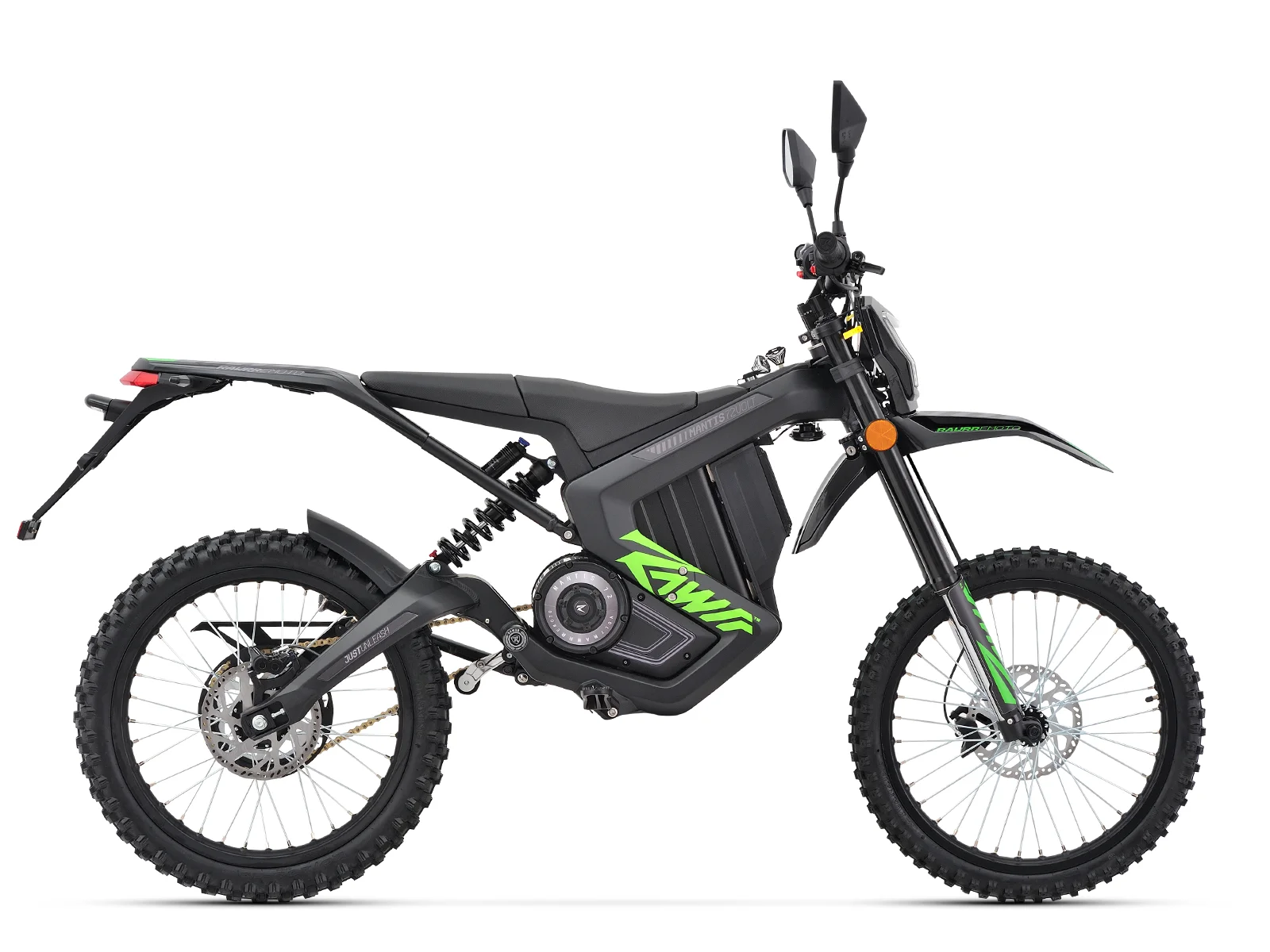

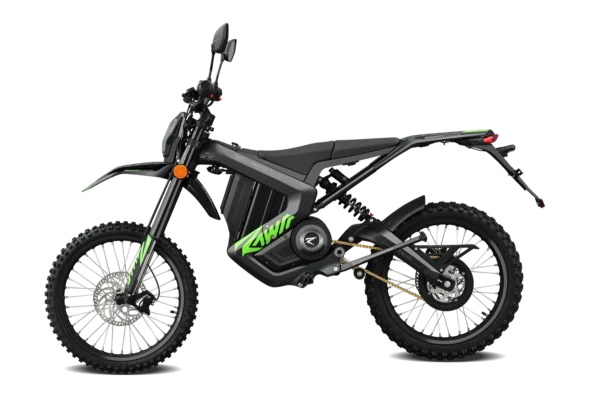

Rawrr Mantis S Road Legal (EEC L3e) – The Ultimate Electric Dual-Sport Experience

Unleash pure power and precision with the Rawrr Mantis S Road Legal (EEC L3e) — the ultimate fusion of electric performance and road-ready engineering. Built for riders who crave adrenaline both on the streets and on the trails, the Rawrr Mantis S takes everything that made the off-road Mantis 72V legendary and elevates it into a fully homologated, road-legal electric motorcycle approved for use across the U.S., Canada, and Europe.

Raw Electric Power Meets Advanced Control

At the heart of the Rawrr Mantis S is a central QS motor producing a peak power of 10 kW (13.4 HP) and 403 Nm (297 lb-ft) of rear wheel torque. The system runs on a 72V / 35Ah lithium-ion battery (2.5 kWh) made from high-quality LG or Samsung 21700 cells, giving you instant throttle response and powerful acceleration.

Paired with a FOC sine-wave controller and a multi-curve power delivery algorithm, the Mantis S optimizes torque, current, and speed in real time. The result? Effortless control, silky-smooth throttle response, and unmatched acceleration from 0–31 mph (0–50 km/h) in just 3.8 seconds.

Performance & Riding Modes

The Rawrr Mantis S features four riding modes — Eco1, Eco2, Eco3, and Sport — each offering a unique balance of efficiency and power. In Sport mode, unleash the full 10 kW output and experience its race-ready DNA. With a top speed of 50 mph (80 km/h), it’s engineered to deliver a responsive, exciting, and dynamic ride every time.

• Max Speed: 50 mph (80 km/h)

• Range: 31–62 miles (50–100 km), depending on terrain and riding style

• Incline Capability: 45° (for riders up to 165 lbs / 75 kg)

• Charging Time: 3–4 hours

Road-Legal Homologation & Dual Sport Versatility

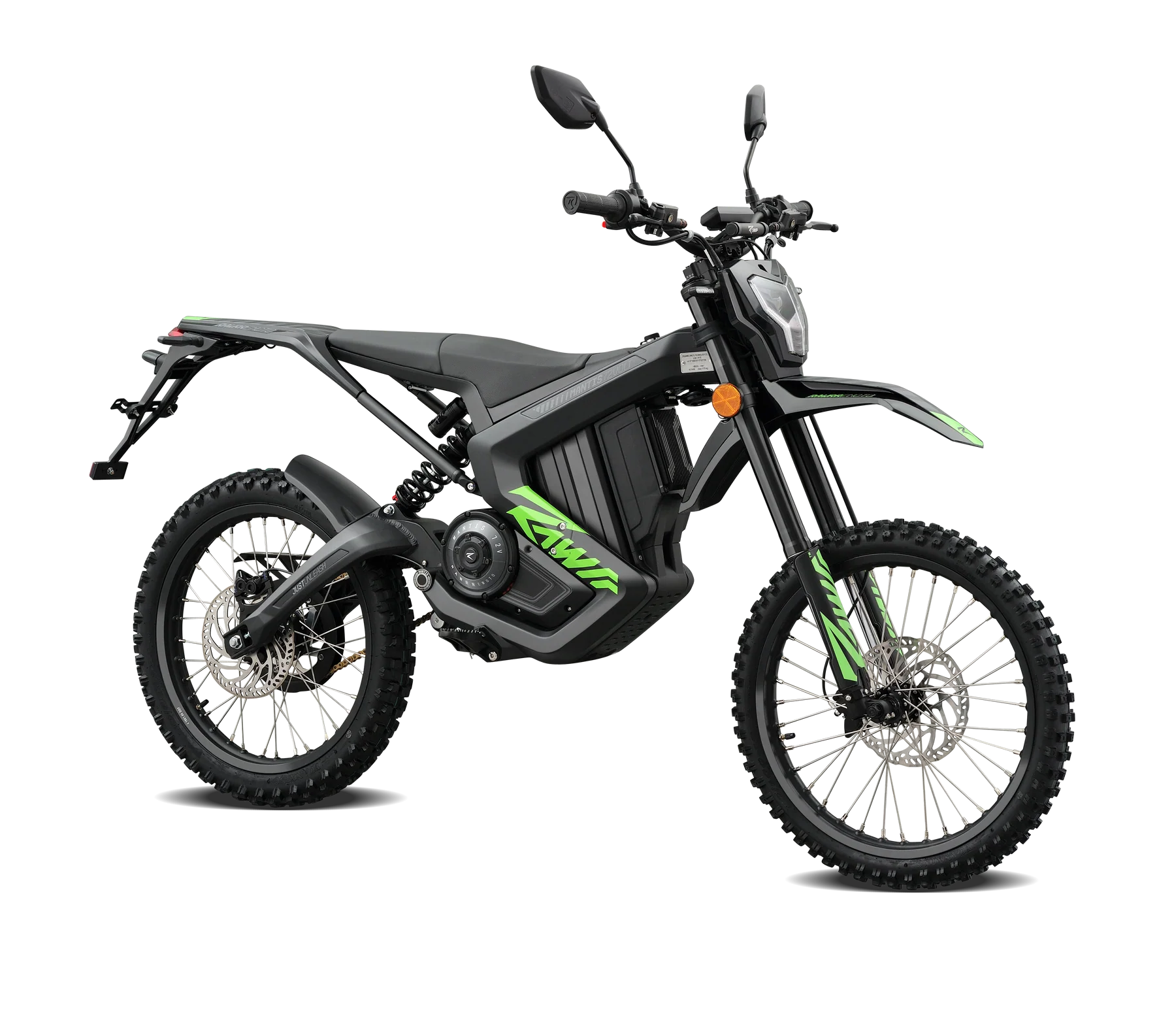

Certified under EEC L3e-B homologation, the Rawrr Mantis S is fully street legal in the U.S. and Europe, while retaining the agility and fun of a dirt bike. It’s perfect for those who want a single machine that conquers both asphalt and adventure. Whether you’re commuting through the city or tearing through forest trails, the Mantis S offers unmatched versatility and performance.

Smart Technology Integration

Control and monitor your Road legal Rawrr Mantis S with the Rawrr App (available on iOS and Android). Customize your riding experience by adjusting:

• Power output and throttle response

• Maximum speed settings

• Battery performance and temperature monitoring

• Power restrictions for new riders or younger users

• Over-the-air firmware updates

This seamless integration makes it one of the most intelligent electric motorcycles in its class.

Premium Build & Components

The Rawrr Mantis S is built on a forged aluminum frame pressed under 6,000 tons of pressure for ultimate strength and low weight. With a wet weight of 176 lbs (80 kg) including the battery, it delivers an ideal power-to-weight ratio.

• Suspension: Fully adjustable hydraulic forks and rear shock by KKE

• Brakes: Hydraulic 4-piston system with 220 mm rotors (8.7 in), featuring regenerative braking

• Tires: Front 70/100-19”, Rear 80/100-19”

• Dimensions: 79.2 × 31.3 × 44.8 in (2012 × 795 × 1139 mm)

• Seat Height: 35.6 in (905 mm)

• Wheelbase: 51.6 in (1310 mm)

• IP Rating: IP67 water resistance – ready for rain, mud, or stream crossings

Battery & Efficiency

The 72V / 35Ah (2.5 kWh) removable lithium battery weighs only 35 lbs (16 kg) and supports up to 1,200 charge cycles for an estimated lifespan of over 50,000 miles (80,000 km). It can be charged via standard 110V outlets (220V in Europe), making it perfect for home charging or on-the-go top-ups.

Why Choose the Rawrr Mantis S

The Rawrr Mantis S Road Legal is more than an electric motorcycle — it’s a revolution in performance and design. With its combination of raw power, premium engineering, and dual-sport functionality, it redefines what’s possible from an electric two-wheeler in this category.

Whether carving through city streets or exploring rugged trails, the Mantis S offers the thrill of traditional motorcycling with the silence, efficiency, and zero-emission future of electric mobility.

Key Specifications

Feature	Specification
Motor Type	QS Central PMSM (Permanent Magnet Synchronous Motor)
Peak Power	10 kW (13.4 HP)
Nominal Power	5 kW (6.7 HP)
Torque (Rear Wheel)	403 Nm (297 lb-ft)
Battery	72V / 35Ah (2.5 kWh) LG / Samsung Cells
Top Speed	50 mph (80 km/h)
Range	31–62 mi (50–100 km)
Charging Time	3–4 hours
Brakes	Hydraulic 4-piston, 220 mm rotors (8.7 in)
Suspension	Fully Adjustable Hydraulic (KKE)
Weight (With Battery)	176 lbs (80 kg)
Seat Height	35.6 in (905 mm)
Wheelbase	51.6 in (1310 mm)
IP Rating	IP67 – Water Resistant
Homologation	EEC L3e-B (Road Legal)

Models Comparison (swipe left on mobile)

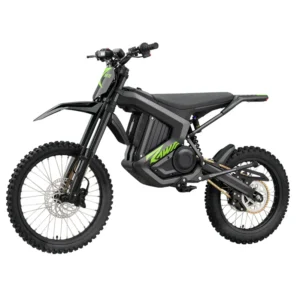

model	Rawrr Mantis 72V	Rawrr Mantis S	Rawrr Mantis X	Rawrr Mantis Mini R/R17(DE02-S+ )
vehicle size	Length 1935mm * Width 795mm * Height 1200mm	Length 2023mm * Width 935mm * Height 1320mm	Length 1875mm * Width 795mm * Height 1130mm	Length 1455mm * Width 671mm * Height 880mm Length 1510mm * Width 671mm * Height 900mm
maximum load	100Kg	100Kg	100Kg	75Kg
vehicle weight	76.5Kg	80Kg	70Kg	56.5Kg
motor type	72V High speed permanent magnet brushless DC motor	72V High speed permanent magnet brushless DC motor	72V High speed permanent magnet brushless DC motor	72V High speed permanent magnet brushless DC motor
Rated out put power	5000W/Max:  7500W	5000W/Max:  9500W	4000W/Max:  7500W	2000W/Max: 6000W
Torque	403N.m on Wheel	403N.m on Wheel	249N.m on Wheel	220N.m on Wheel
Motor maximum speed	6300/RPM	6300/RPM	7000/RPM	3300/RPM
Transmission ratio	1:8.96	1:8.96	1:9.3	1:5.7
power mode	Eco（1/2/3）  /Sport/R	Eco（1/2/3）  /Sport/R	Eco/Sport/Race	1/2/3
cooling method	natural cooling	natural cooling	natural cooling	natural cooling
Batteries	107*143*404mm  Weight ：16.5Kg	107*143*404mm  Weight ：16.5Kg	L*W*H: 160*143*404mm  Weight : 15.5Kg	L*W*H:140*140*330  Weight: 10.4Kg
Battery capacity	72V 35AH/2520WH	72V 35AH/2520WH	72V 30AH/2160Wh	72V 20AH/1440Wh
Battery charging time	3-6hours	3-6hours	3-6hours	4.5hours
cruising range	144km @Average speed 25km/h	144km @Average speed 25km/h	100km @Average speed 25km/h	55km @Average speed 39km/h
charger line voltage	AC 110-240V  50/60HZ	AC 110-240V  50/60HZ	AC 110-240V  50/60HZ	AC 110-240V  50/60HZ
charging power	432W	432W	432W	290W/360W
frame structure type	Double beam forged aluminum alloy /6061	Double beam forged aluminum alloy /6061	Double beam forged aluminum alloy /6061	Double beam forged aluminum alloy /6061
Handle bar	tapered aluminum 22mm	tapered aluminum 22mm	tapered aluminum 22mm	tapered aluminum 22mm
front shock absorber	φ45*775mm/Inverted adjustable/hydraulic danping structure/preloadedadjustable rebound	φ45*775mm/Inverted adjustable/hydraulic danping structure/preloadedadjustable rebound	φ44*750mm/Inverted adjustable/hydraulic danping structure/preloadedadjustable rebound	φ48-φ45*600mm（inverted and non-adjustable） spring hydraulic damping shock adjustable
rear shock absorber	L265mm/Hydraulic damping structure/rebound and downward pressure adjustable	L265mm/Hydraulic damping structure/rebound and downward pressure adjustable	L300mm/Hydraulic damping structure/rebound and downward pressure adjustable	L230mm/Hydraulic damping structure/rebound and downward pressure adjustable
front/rear damping travel	210mm/80mm	210mm/80mm	200mm/70mm	100mm/45mm
front brake	220mm/4piston hydraulic disc tyep	220mm/4piston hydraulic disc tyep	220mm/4piston hydraulic disc tyep	203mm/2piston hydraulic disc tyep
rear brake	220mm/4piston hydraulic disc tyep	220mm/4piston hydraulic disc tyep	203mm/4piston hydraulic disc tyep	203mm/2piston hydraulic disc tyep
Rims(front/rear)	1.6*19 spoke aluminum rim/1.85*1spoke aluminum rim	1.6*19spoke aluminum rim/1.85*19spoke aluminum rim	1.6*19 spoke aluminum rim/1.85*17spoke aluminum rim	1.4*14 spoke aluminum rim/1.6*12 spoke aluminum rim 1.4*12 spoke aluminum rim/1.6*10 spoke aluminum rim
Tire size(front/rear)	front70/100-19  rear80/100-19	front70/100-19  rear80/100-19	front70/100-19  rear2.75-17	front70-100/17  rear3.0/14 front60-100/14  rear2.75/12
chain	428H	428H	420	06BH
wheelbase	1290mm	1290mm	1245mm	1095mm
Height of handlebar	1090mm	1090mm	1050mm	875mm/895mm
ground clearance	310mm	310mm	325mm	220mm/240mm
seat height	890mm	890mm	840mm	635mm/654mm
Top speed	85km/h	85km/h	83km/h	75km/h
Acceleration	0-30km/h 1.6s     0-50km/h  3.8s      0-80km/h  11.6s		0-30km/h 1.8S    0-50km/h 3.6S     0-80km/h  12S	0-30km/h 1.8s     0-50km/h 3.6S    0-75km/h 9.6s
