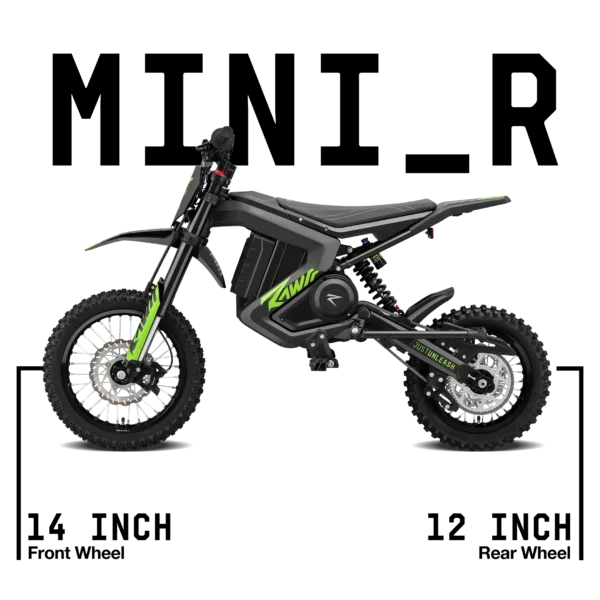

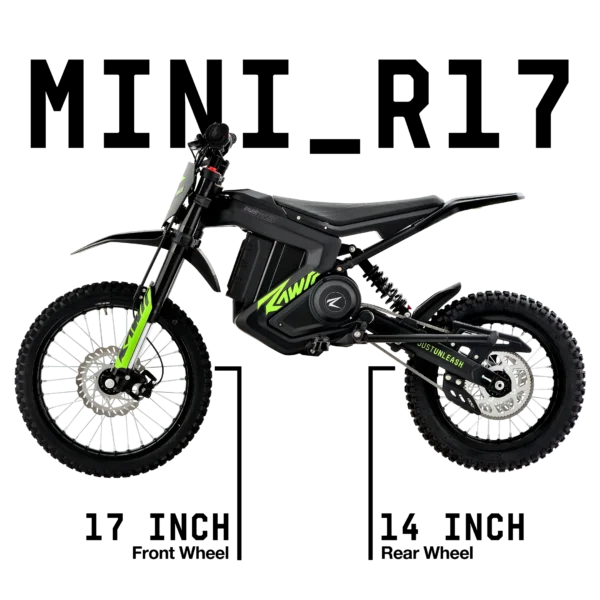

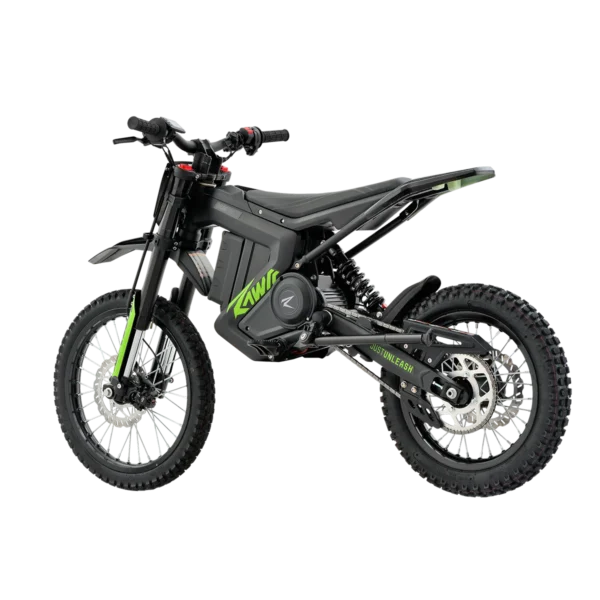

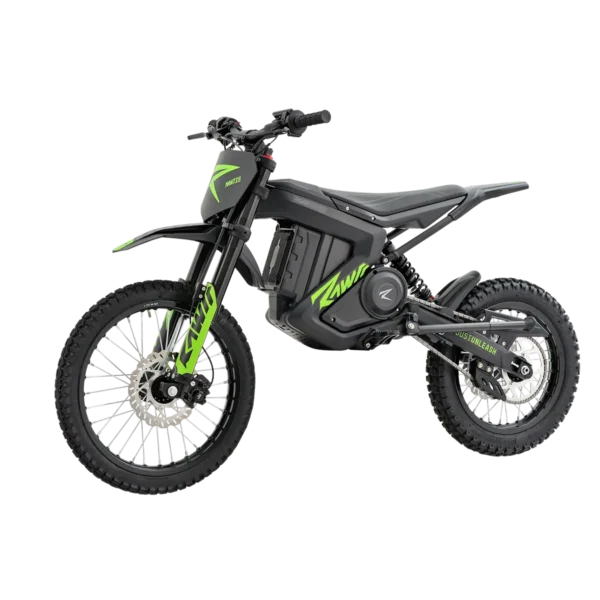

RAWRR Mantis Mini R & Mini R17, Best Kids Electric Dirt Bike | High Performance.

Designed for young riders and newcomers, the Rawrr Mantis Mini R delivers an exciting and accessible electric off-road experience. Its compact size (1580mm x 671mm x 960mm) makes it perfect for youth, while the 2000W motor (6000W peak) and 210nm torque provide impressive power. Three adjustable power modes allow riders to tailor their experience to any terrain.

Equipped with a reliable 72V 20Ah Samsung Lithium battery and smooth aluminum/spring hydraulic suspension, the Mantis Mini R ensures a comfortable and controlled ride. Rawrr Mantis brings quality and performance to every rider, starting with the Mini R.

The RAWRR Mantis Mini R series electric dirt bike for kids is the ultimate electric dirt bikes available for kids and small teens who want real performance in a compact size. Whether you purchase the Rawrr Mantis Mini R or the taller Rawrr Mini R17, both bikes deliver serious power with a 72V battery, thrilling speeds, and up to 31.7 miles of range in Eco mode.

Designed for first-time, and growing riders, the Rawrr Mantis Mini R series gives parents the option to choose a bike their child can grow into, so you’re not replacing it after one season. The Rawrr Mantis Mini series is perfect for backyard shredding, trail riding, or even pit racing. This is the electric dirt bike that brings real moto fun without the high price tag.

With aircraft-grade aluminum, hydraulic brakes on the front and rear, and adjustable suspension, the Mini R and R17 don’t just go fast, they let the whole family have confidence in the rider.

Model Specifications:

• Mantis Mini R
  • Tire Size: 14″ front | 12″ rear
  • Ideal Rider Height: 3.5′ – 4.25′

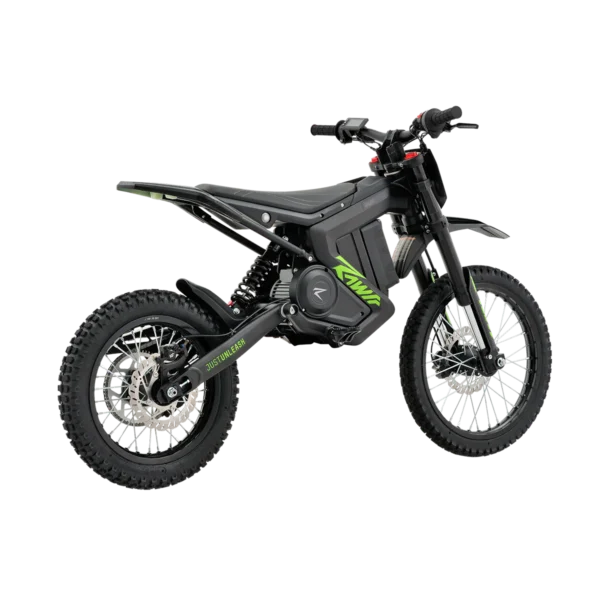

• Mantis Mini R17
  • Tire Size: 17″ front | 14″ rear
  • Ideal Rider Height: 4′ – 5.6′

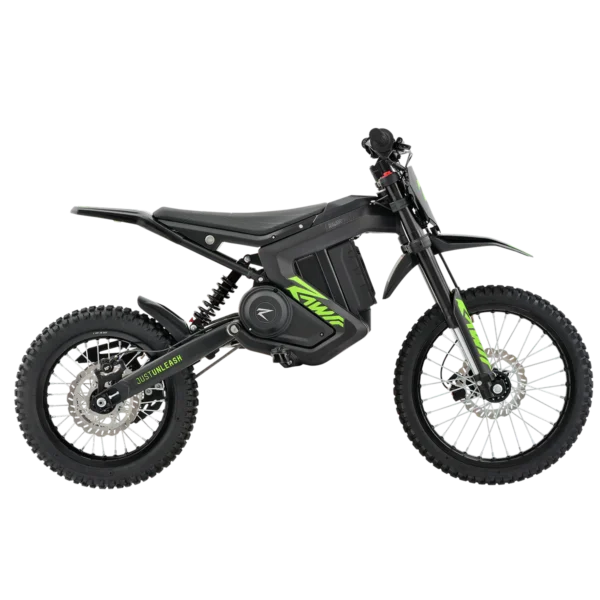

Improved Performance

Rawrr Mantis Mini R/ Mini R17 Key Features:

• Top Speed: 46 MPH
• Motor: 6kW Peak Power (PMSM)
• Acceleration: 0–30 MPH in 3.6 seconds
• Battery: 72V (swappable)
• Controller: Fully tunable w/ Eco, Sport, and Race Modes

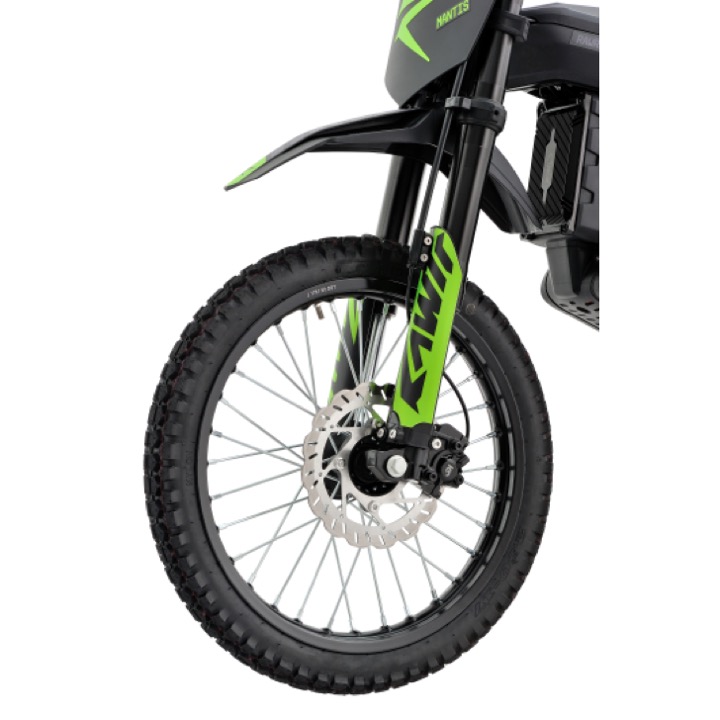

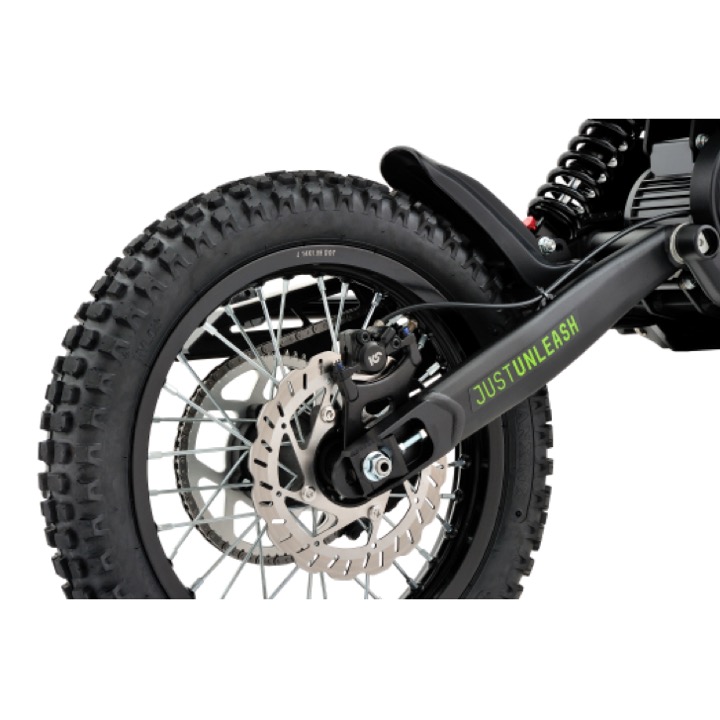

• Brakes: 203mm front + rear hydraulic disc brakes
• Frame: Aircraft-grade aluminum alloy
• Lighting: Headlight ready + included rear reflector
• Weight: R: 115 lbs | R17: 122 lbs with battery
• Range: Up to 31 miles (Eco mode, terrain dependent)

Both models offer post-purchase upgrade or downsizing options, ensuring long-term adaptability as riders grow.

One bike–Two Sizes

Configure the Rawrr Mantis Mini R to fit your size out of the box. Things change, like outgrowing your bike. But the Mini R is adaptable with wheel kits to allow the bike to grow with you. Pick between Mini R or Mini R17 when you order. If you need to change later down the road, we got you. You just need a wheel upgrade kit to transform your Mantis Mini R.

Ready to ride with confidence

At Rawrr, quality is our top priority. Every Rawrr Mantis Mini R and Rawrr Mantis Mini R17 undergoes a final check in the U.S. to ensure perfect torque on all screws, properly aligned tires, and flawless suspension performance so your bike is ready to ride the moment it arrives.

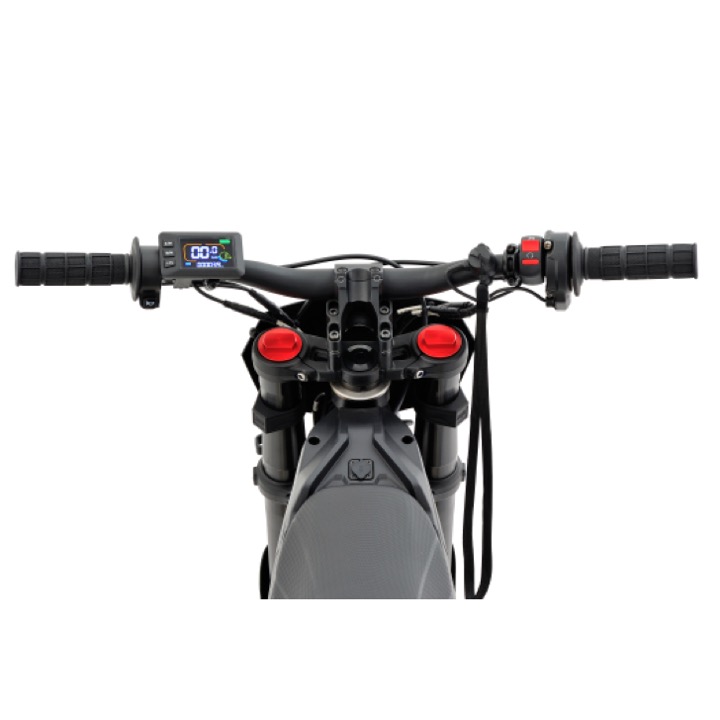

Magnetic Leash

For safety purposes, the Rawrr Mantis Mini R comes with a magnetic kill switch. The rider straps the leash to their wrist, and in the case of an accident, the magnet will be pulled off. This disengages the throttle preventing any further acceleration after a loss of control.

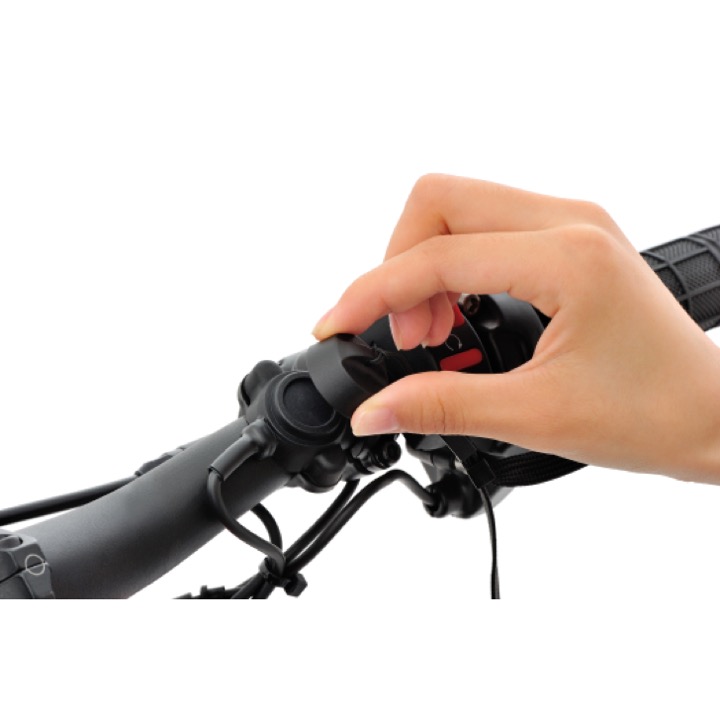

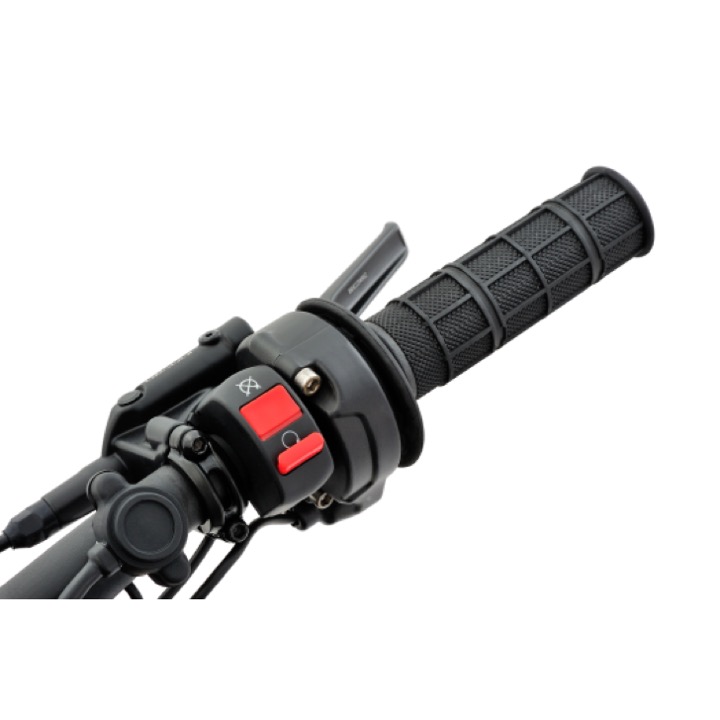

Kill Switch

The Mantis Mini R comes equipped with a safety mechanism called a kill switch. This switch will cut all input from the throttle, keeping you safe when you aren’t actively riding. And if you were to start losing control, you can flip this switch to prevent “whisky throttle”.
This feature is also great for mounting and dismounting the bike, so you don’t accidentally hit the gas as you get on or off the bike.

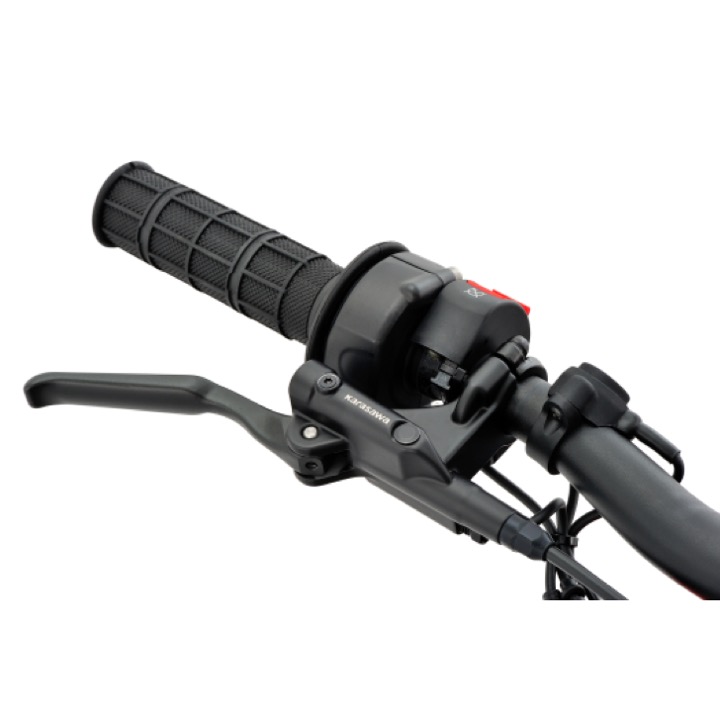

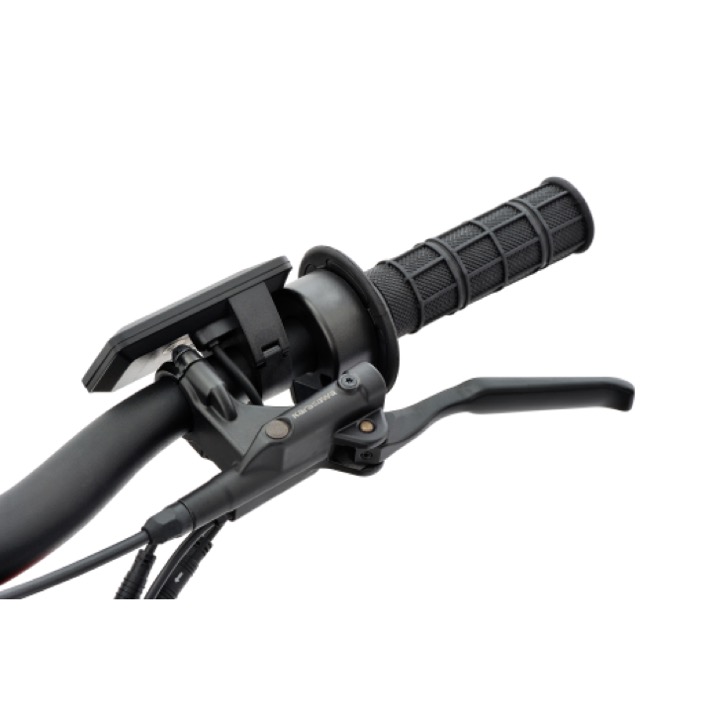

Smart Brake System

The brakes on the Mantis Mini contain sensors that can detect when you are pressing them. This prevents unwanted acceleration when you’re slowing down and can be especially useful for beginners.
Don’t worry stunters; we thought of you too! The brake’s sensors can easily be disabled by simply turning the feature off from the app.

Kickstand Sensor

The kickstand on the Rawrr Mantis Mini contains a smart sensor allowing the bike to go into Park when engaged. This safety measure prevents accidental take offs when mounting and dismounting the bike. This feature can also be disabled from the app, though it is not recommended.

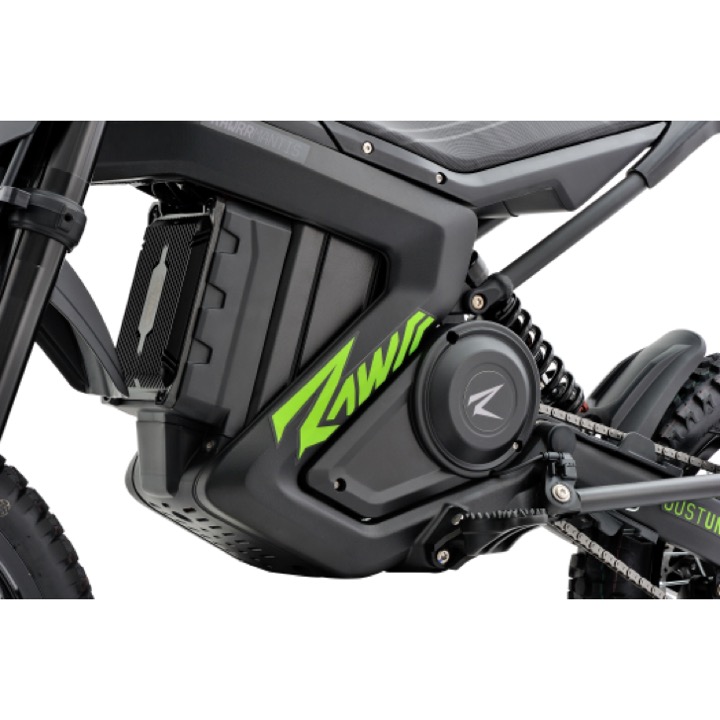

Water Sealed Battery

The Rawr Mantis Mini was designed for all terrain, and we mean ALL TERRAIN. Go through mud and puddles, ride in the rain, and wash your bike without worry. The 72V Mantis Mini R Battery has seals preventing water ingress keeping you and your bike safe.

Rawrr Mantis Mini Specifications:

model	Rawrr Mantis 72V	Rawrr Mantis S	Rawrr Mantis X	Rawrr Mantis Mini R/R17(DE02-S+ )
vehicle size	Length 1935mm * Width 795mm * Height 1200mm	Length 2023mm * Width 935mm * Height 1320mm	Length 1875mm * Width 795mm * Height 1130mm	Length 1455mm * Width 671mm * Height 880mm Length 1510mm * Width 671mm * Height 900mm
maximum load	100Kg	100Kg	100Kg	75Kg
vehicle weight	76.5Kg	80Kg	70Kg	56.5Kg
motor type	72V High speed permanent magnet brushless DC motor	72V High speed permanent magnet brushless DC motor	72V High speed permanent magnet brushless DC motor	72V High speed permanent magnet brushless DC motor
Rated out put power	5000W/Max:  7500W	5000W/Max:  9500W	4000W/Max:  7500W	2000W/Max: 6000W
Torque	403N.m on Wheel	403N.m on Wheel	249N.m on Wheel	220N.m on Wheel
Motor maximum speed	6300/RPM	6300/RPM	7000/RPM	3300/RPM
Transmission ratio	1:8.96	1:8.96	1:9.3	1:5.7
power mode	Eco（1/2/3）  /Sport/R	Eco（1/2/3）  /Sport/R	Eco/Sport/Race	1/2/3
cooling method	natural cooling	natural cooling	natural cooling	natural cooling
Batteries	107*143*404mm  Weight ：16.5Kg	107*143*404mm  Weight ：16.5Kg	L*W*H: 160*143*404mm  Weight : 15.5Kg	L*W*H:140*140*330  Weight: 10.4Kg
Battery capacity	72V 35AH/2520WH	72V 35AH/2520WH	72V 30AH/2160Wh	72V 20AH/1440Wh
Battery charging time	3-6hours	3-6hours	3-6hours	4.5hours
cruising range	144km @Average speed 25km/h	144km @Average speed 25km/h	100km @Average speed 25km/h	55km @Average speed 39km/h
charger line voltage	AC 110-240V  50/60HZ	AC 110-240V  50/60HZ	AC 110-240V  50/60HZ	AC 110-240V  50/60HZ
charging power	432W	432W	432W	290W/360W
frame structure type	Double beam forged aluminum alloy /6061	Double beam forged aluminum alloy /6061	Double beam forged aluminum alloy /6061	Double beam forged aluminum alloy /6061
Handle bar	tapered aluminum 22mm	tapered aluminum 22mm	tapered aluminum 22mm	tapered aluminum 22mm
front shock absorber	φ45*775mm/Inverted adjustable/hydraulic danping structure/preloadedadjustable rebound	φ45*775mm/Inverted adjustable/hydraulic danping structure/preloadedadjustable rebound	φ44*750mm/Inverted adjustable/hydraulic danping structure/preloadedadjustable rebound	φ48-φ45*600mm（inverted and non-adjustable） spring hydraulic damping shock adjustable
rear shock absorber	L265mm/Hydraulic damping structure/rebound and downward pressure adjustable	L265mm/Hydraulic damping structure/rebound and downward pressure adjustable	L300mm/Hydraulic damping structure/rebound and downward pressure adjustable	L230mm/Hydraulic damping structure/rebound and downward pressure adjustable
front/rear damping travel	210mm/80mm	210mm/80mm	200mm/70mm	100mm/45mm
front brake	220mm/4piston hydraulic disc tyep	220mm/4piston hydraulic disc tyep	220mm/4piston hydraulic disc tyep	203mm/2piston hydraulic disc tyep
rear brake	220mm/4piston hydraulic disc tyep	220mm/4piston hydraulic disc tyep	203mm/4piston hydraulic disc tyep	203mm/2piston hydraulic disc tyep
Rims(front/rear)	1.6*19 spoke aluminum rim/1.85*1spoke aluminum rim	1.6*19spoke aluminum rim/1.85*19spoke aluminum rim	1.6*19 spoke aluminum rim/1.85*17spoke aluminum rim	1.4*14 spoke aluminum rim/1.6*12 spoke aluminum rim 1.4*12 spoke aluminum rim/1.6*10 spoke aluminum rim
Tire size(front/rear)	front70/100-19  rear80/100-19	front70/100-19  rear80/100-19	front70/100-19  rear2.75-17	front70-100/17  rear3.0/14 front60-100/14  rear2.75/12
chain	428H	428H	420	06BH
wheelbase	1290mm	1290mm	1245mm	1095mm
Height of handlebar	1090mm	1090mm	1050mm	875mm/895mm
ground clearance	310mm	310mm	325mm	220mm/240mm
seat height	890mm	890mm	840mm	635mm/654mm
Top speed	85km/h	85km/h	83km/h	75km/h
Acceleration	0-30km/h 1.6s     0-50km/h  3.8s      0-80km/h  11.6s		0-30km/h 1.8S    0-50km/h 3.6S     0-80km/h  12S	0-30km/h 1.8s     0-50km/h 3.6S    0-75km/h 9.6s
