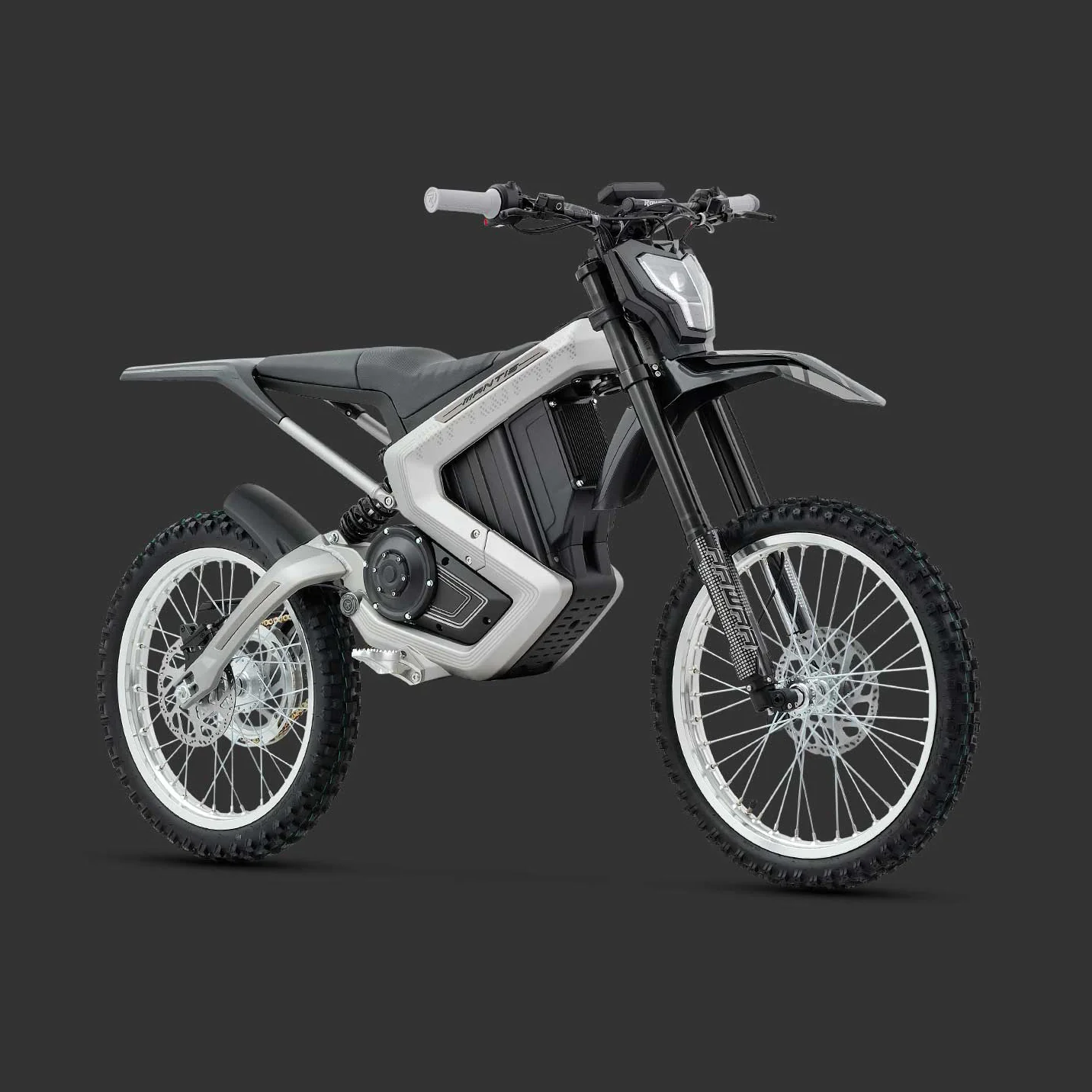

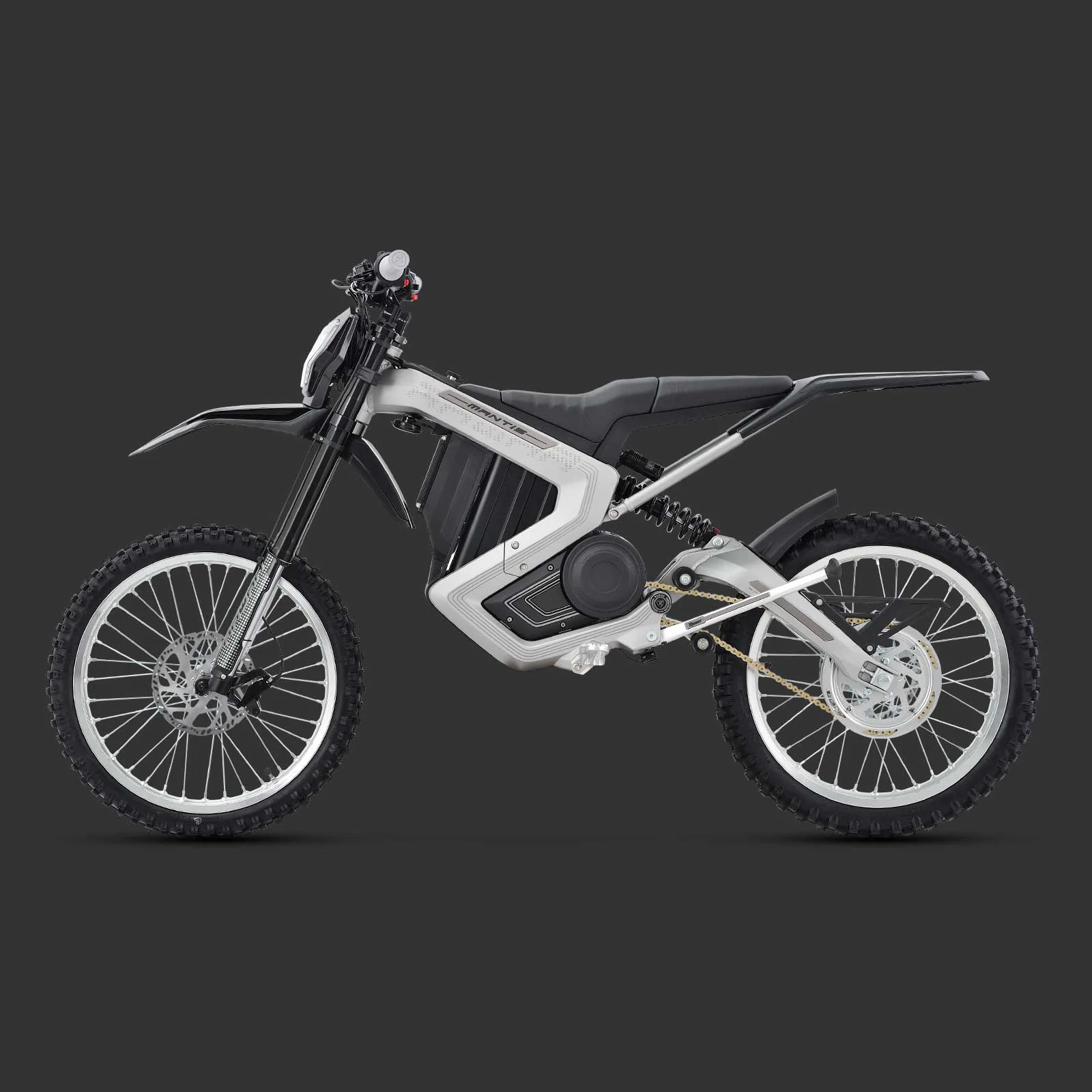

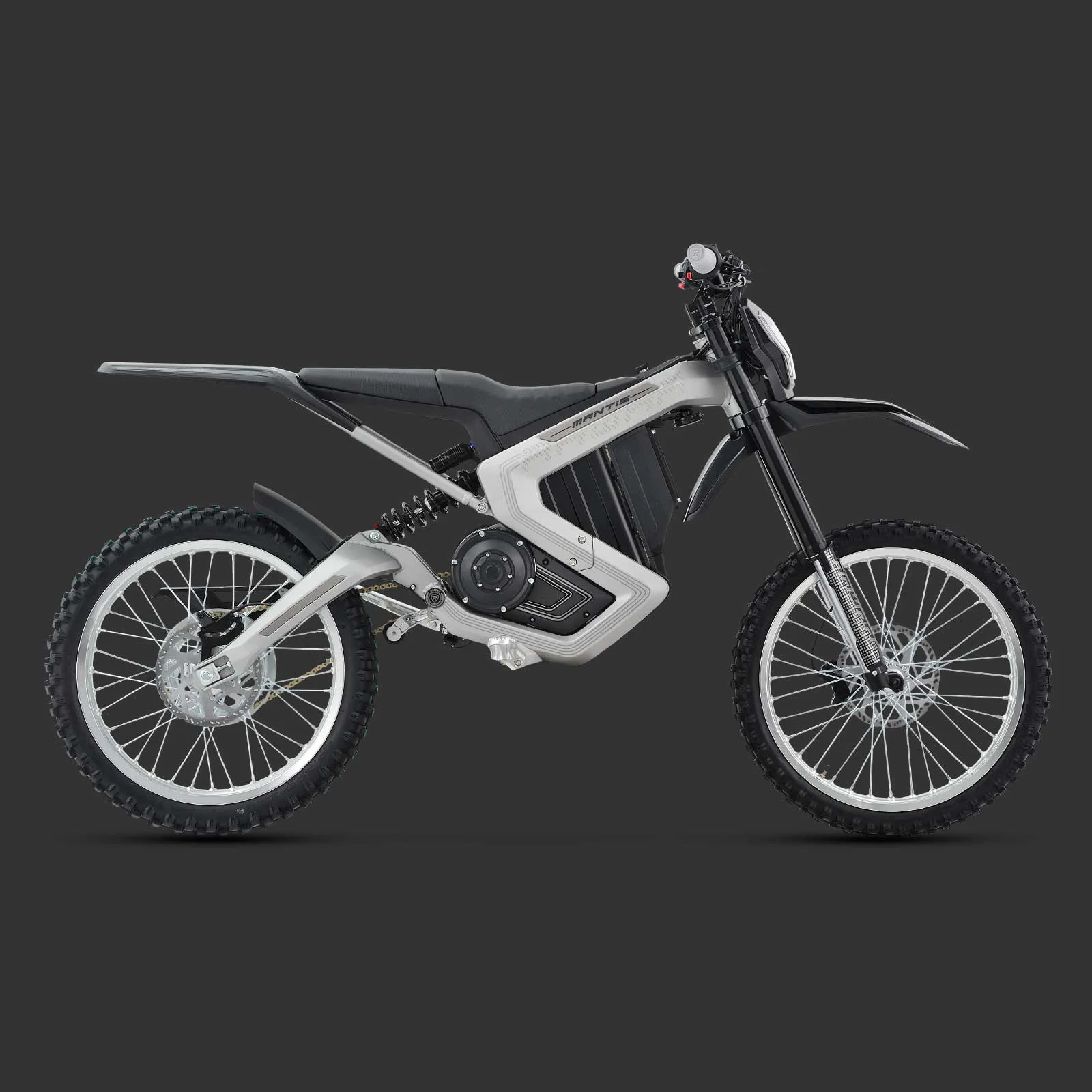

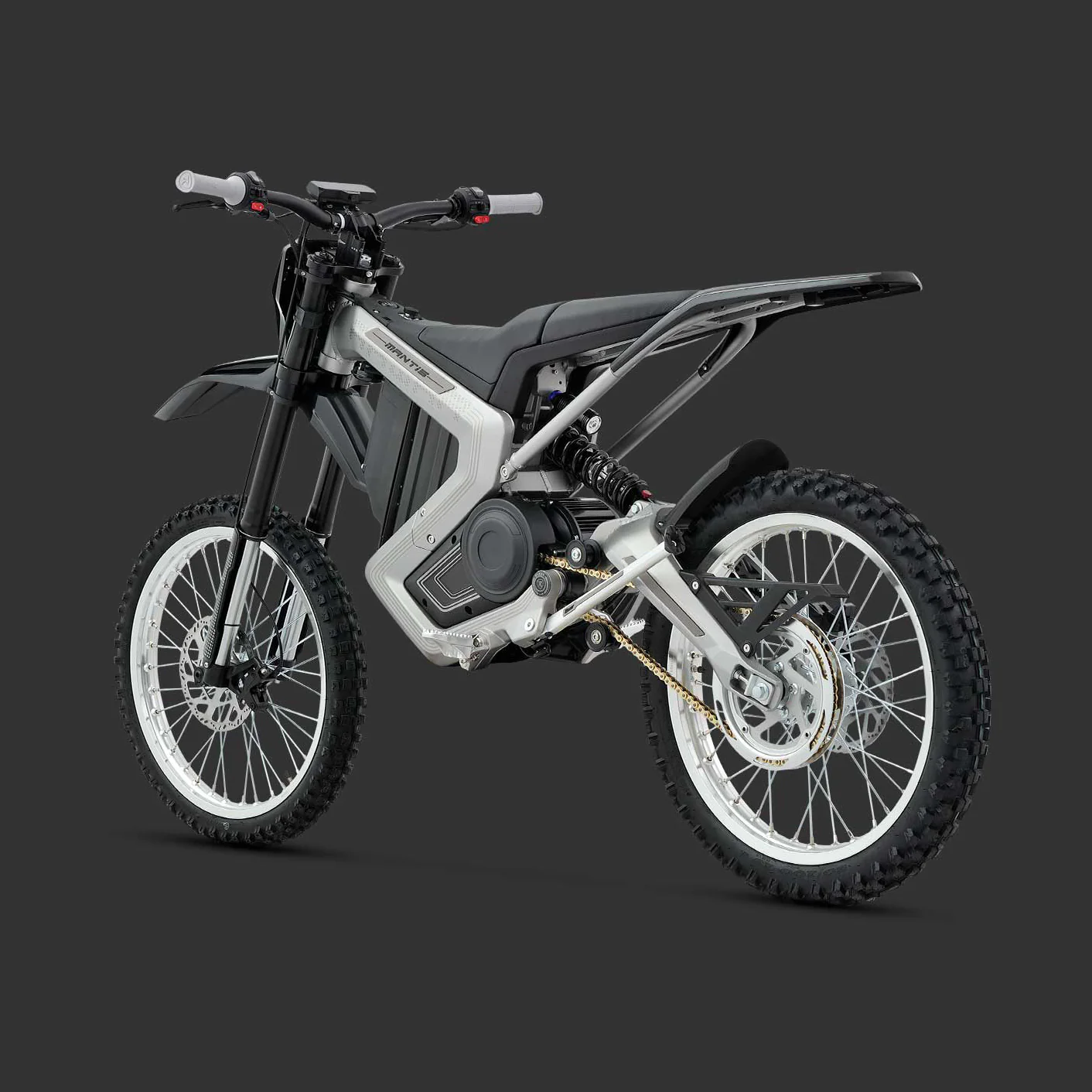

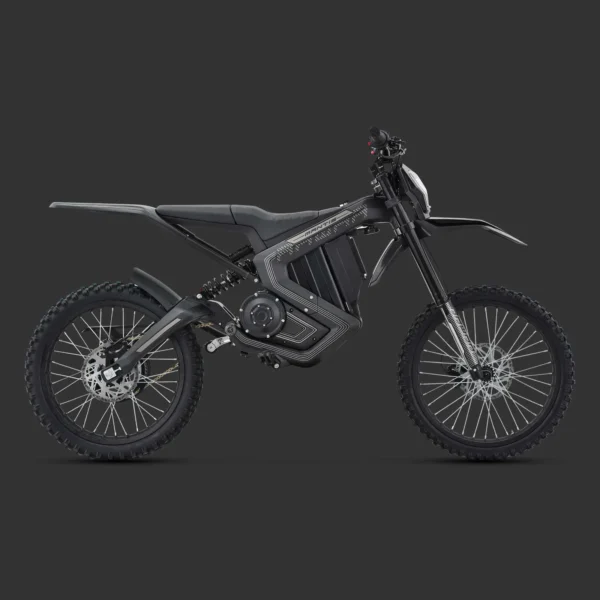

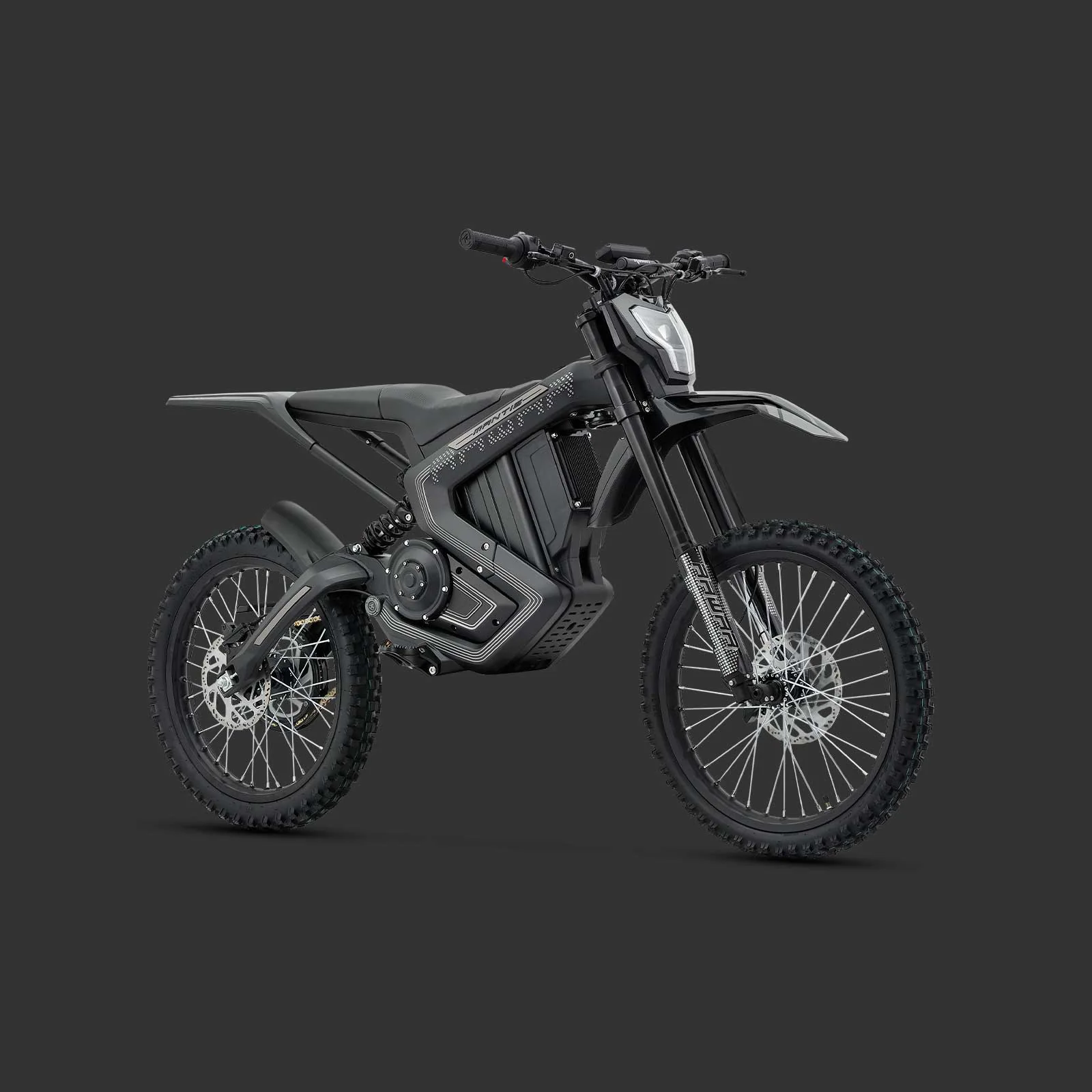

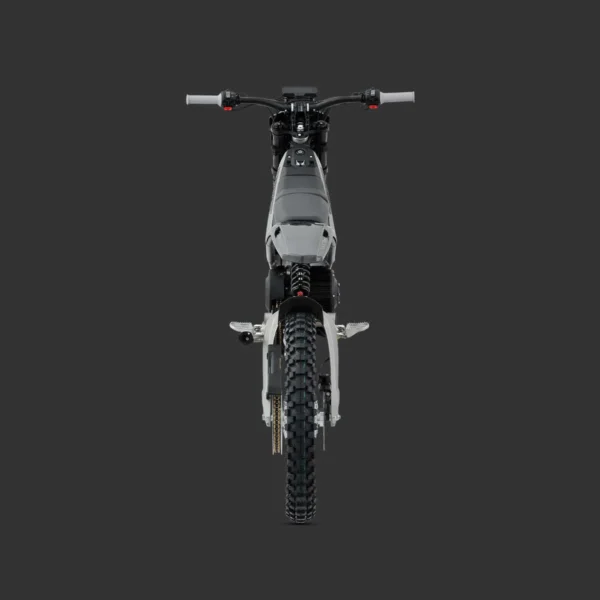

72V MANTIS-DEMOLISH THE TRAILS IN STYLE

Introducing the Rawrr Mantis 72V, the ultimate electric dirt bike designed for thrill-seekers and off-road enthusiasts. Powered by a robust 9500W motor and a high-capacity 72V 35Ah battery, this beast delivers an exhilarating top speed of 54 mph, making it perfect for tackling tough terrain and steep trails.

With a seat height of 34 inches, the Mantis offers a comfortable riding position for various rider sizes. Its rugged 19-inch front and rear wheels provide exceptional stability and control, ensuring a smooth ride over obstacles and uneven surfaces.

At an affordable price of $3999, the Rawrr Mantis 72V combines cutting-edge technology with high-performance capabilities, making it an unbeatable choice for anyone looking to elevate their dirt biking experience. Get ready to unleash your adventure.

The 72V Rawrr Mantis Electric All-Terrain eMoto is the ultimate choice for adventurers and thrill-seekers who want to conquer any terrain easily. With its high-performance features and advanced technology, this bike is designed to take places you never thought possible.

The Rawrr Mantis is larger and more comfortable than the competition, yet provides serious performance. This means that your Mantis is ready to shred the trails straight from the factory. The larger frame and longer suspension travel means that it stays comfortable for longer, rougher rides. The bigger size also means that the Mantis can accommodate big and tall riders.

RAWRR MANTIS 72V HIGHLIGHTS

PERFORMANCE
Top Speed 54MPH
Acceleration 0-19mph: 1.9s | 0-31MPH: 3.8s | 0-50MPH: 11.6s
Range 75 Miles eco mode 15mph
Max Torque 297.24 ftlb
Max Motor Power 9500W
Regular Motor Power 5000W
Climbing Ability 45 Degrees

ELECTRICAL

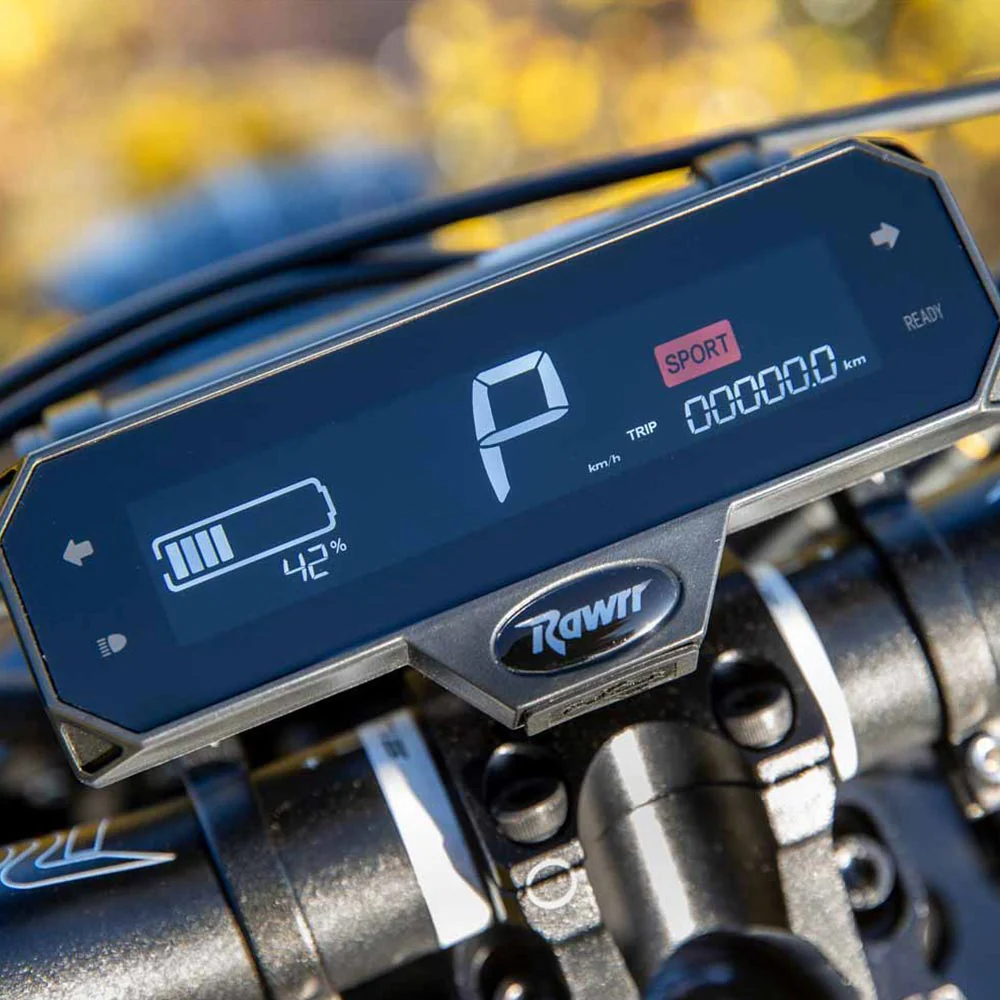

Display Type LCD
Battery Type Lithium Ion
Battery Cap 72V 2520WH
Battery Cycle Life 800 Cycles
Charger input voltage AC110/220V
Charging Time 3-6 hours
Controller Type FOC Sine Wave
Drive Modes Eco1 /Eco2 / Eco3 / Sport

MECHANICAL
Brake Type 4-Piston Hydraulic Disc Brakes
Front Fork Travel Distance 8.7 In
Rear Suspension Travel 3 IN
Motor Type Brushless
Motor Cooling Method Air-Cooled
Power Delivery Gearbox and Chain Driven
Motor Max Operating Temperature 85 degrees Celsius
Frame 6061 Aluminum Alloy

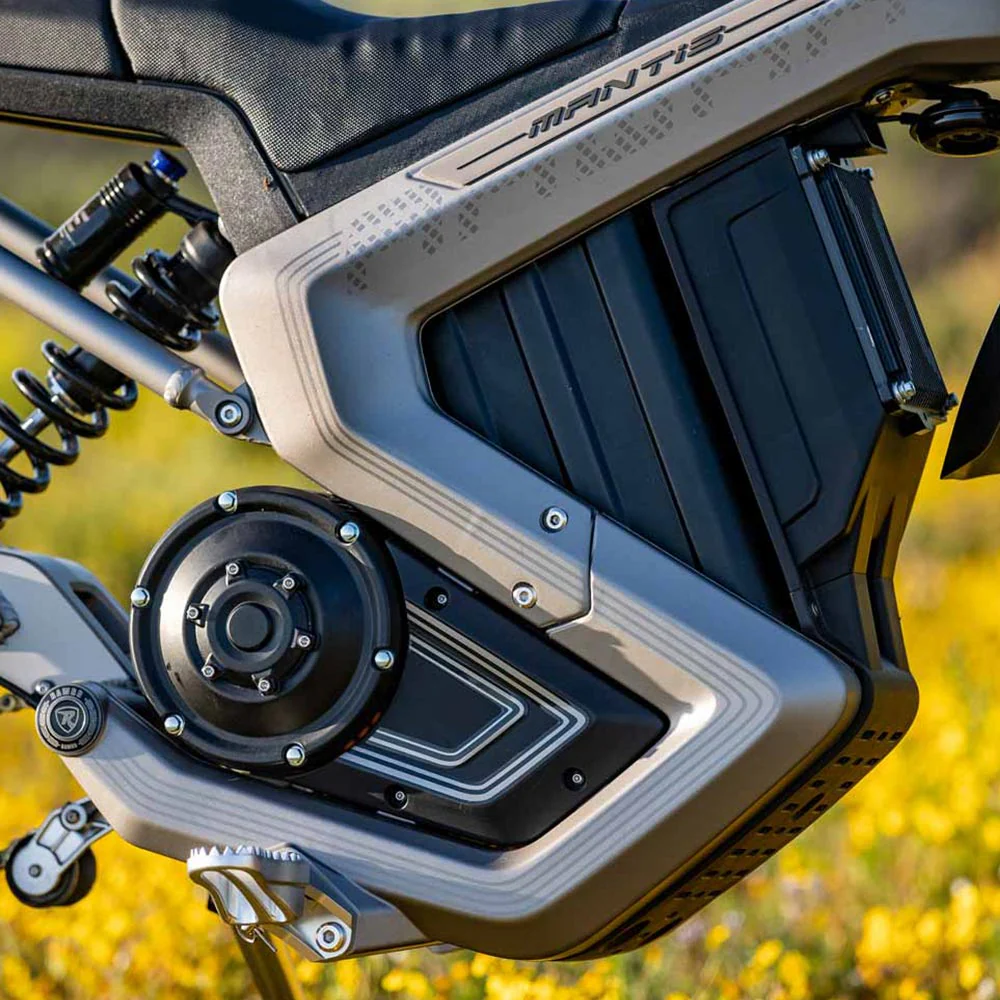

RAWRR MANTIS 72V POWERTRAIN

Motor	The Rawrr Mantis 72v has a powerful heart – 7500W of the latest generation of high-performance Permanent Magnet Synchronous Motors (PMSM), providing incredible power and torque delivery.
4 Riding Modes	ECO 1 MODE START RIDING The perfect mode for first-time riders and beginners featuring a soft throttle response and a very low top speed. Perfect for loading and unloading.ECO 2 MODE EASY GOING Ready to go a little faster? This mode is an easy step up for beginner riders as they gain more confidence. ECO 3 MODE POWER & RANGE This is a mode for all riders that provides good power and speed, but with longer range than Sport Mode. SPORT MODE BLAZING SPEED Full acceleration and maximum top speed. This is a mode for experienced riders and sanctioned races to get the most out of mantis.

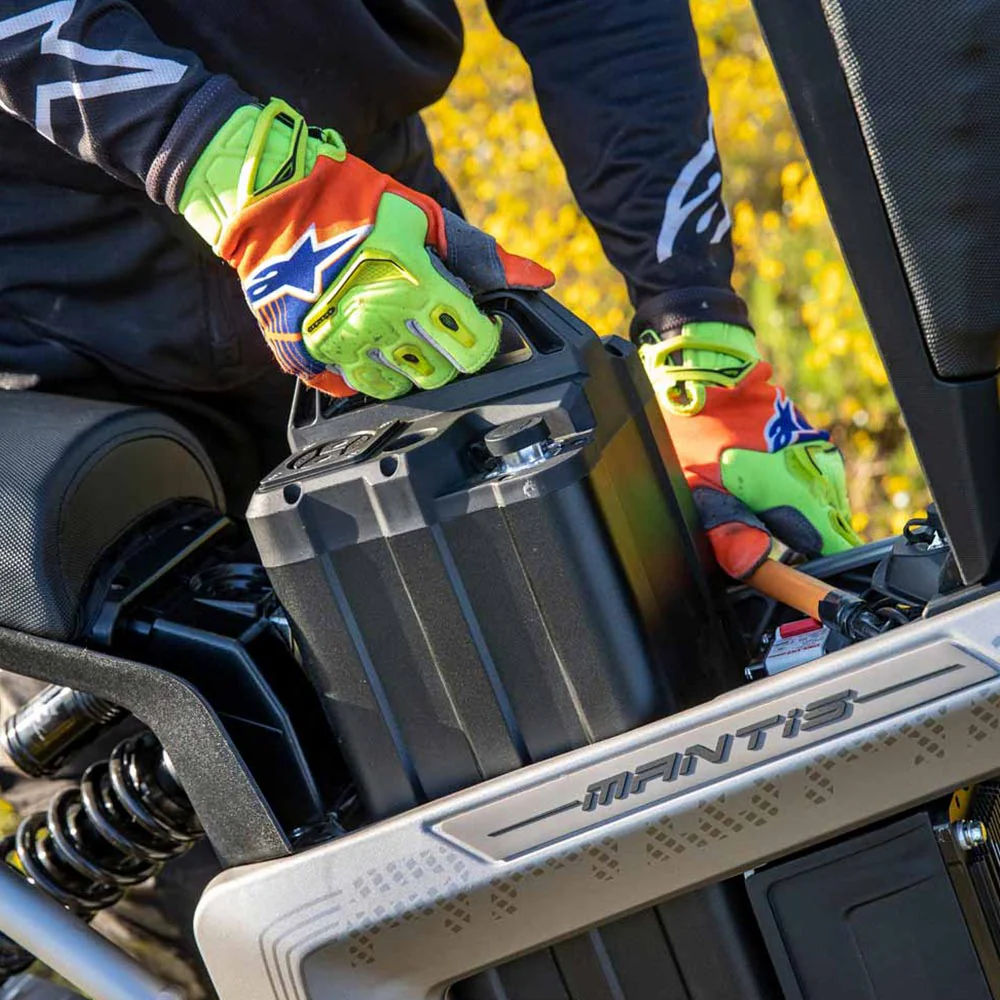

Battery	72V 35Ah. The Mantis uses the latest, advanced Samsung 21700 battery cells, which lead the industry in technology, performance and safety.
MAX TORQUE	50 Nm
CHARGING	3-6 hours with Quickcharge Function
CONTROLLER	Mantis FOC Controller

RAWRR MANTIS 72V DIMENSIONS & WEIGHT

Length x Width x Height	76.2″ x 31.3″ x 47.2″
Wheelbase	50.8″
Seat Height	33.5″
Bike Weight/W Battery	130lbs/165lbs
Max Weight Capacity	265 Lbs.

RAWRR MANTIS 72V CHASIS

Front Fork Stroke	200mm
Rear Shock Absorber Stroke	75mm
Brake Type	Hydraulic Disc Brake
Front/Back Disc Brake	203mm
Tire Size (Front)	70/100
Tire Size (Rear)	80/100

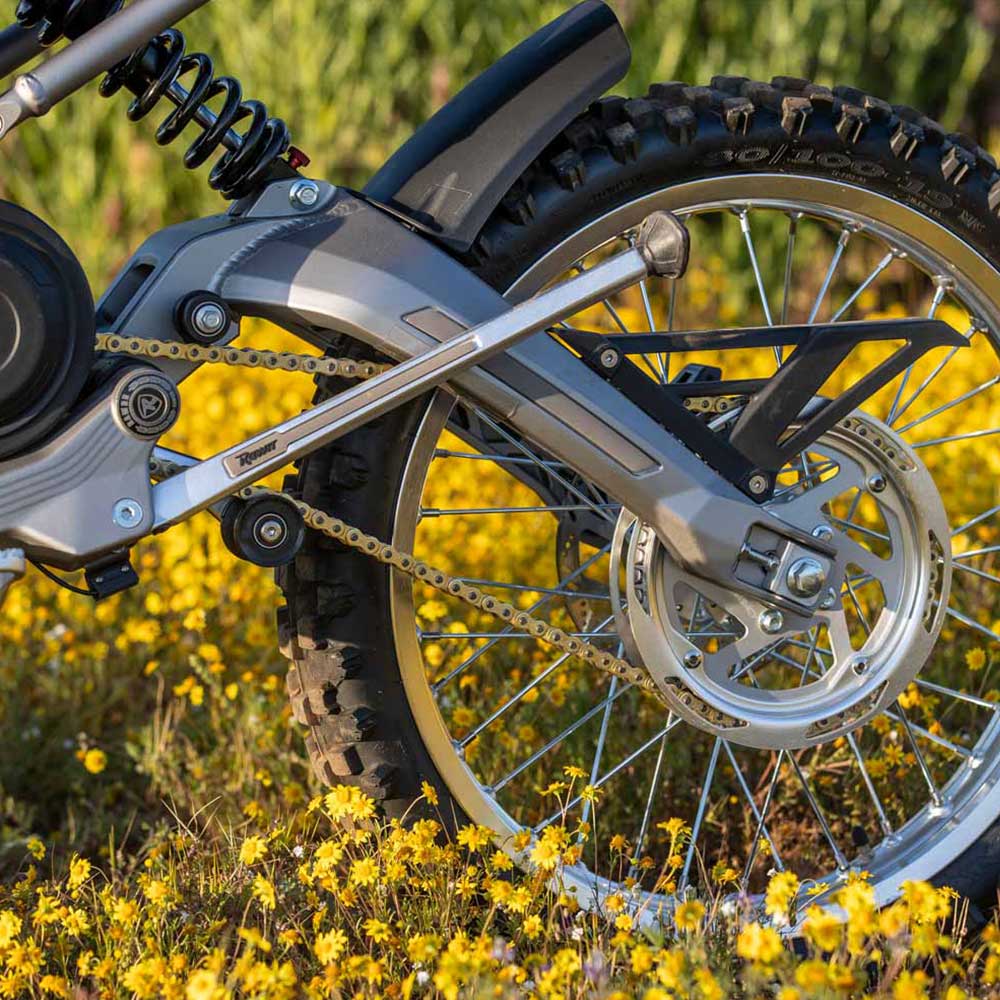

Motorcycle Transmission	Other electric bikes use belts for gear reduction between the motor and front sprocket. This drains power and is more susceptible to failures. The Rawwr Mantis uses internal, motorcycle-style gears creating better efficiency and a smoother ride.

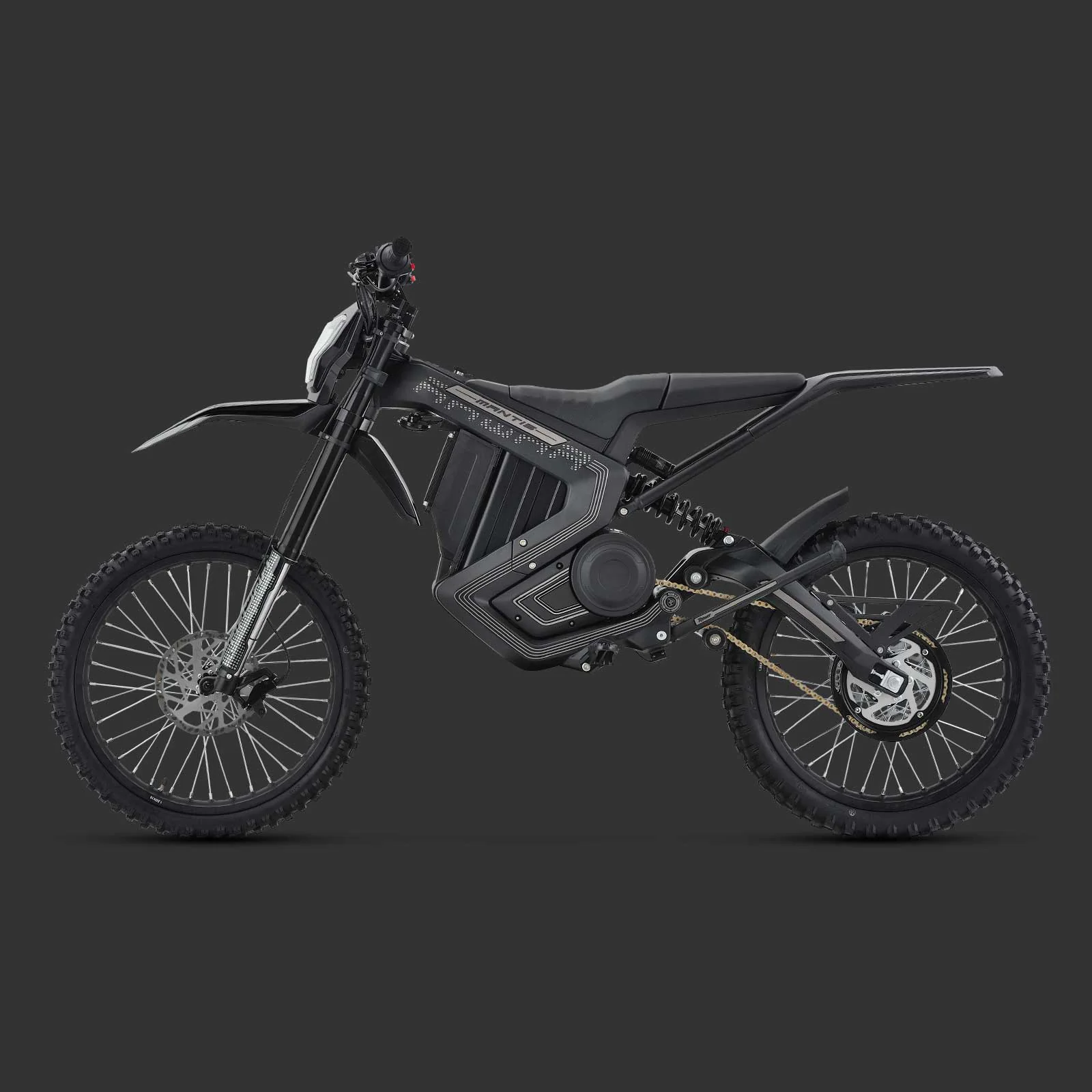

Model Colors	Black and Silver
Additional Features	Rawr Mantis is the only brand in the market that offers controller adjustments through an app. Our app’s features will continuously be advanced. In the forthcoming Mini Mantis for kids, parents and users can control the bike’s maximum power, starting with the simplest mode for training and gradually increasing until their skills warrant a full-power mode. The Mantis app will provide hundreds of adjustable riding mode combinations, allowing users to customize their favorite riding mode according to personal preferences and riding conditions.

Models Comparison (swipe left on mobile)

model	Rawrr Mantis 72V	Rawrr Mantis S	Rawrr Mantis X	Rawrr Mantis Mini R/R17(DE02-S+ )
vehicle size	Length 1935mm * Width 795mm * Height 1200mm	Length 2023mm * Width 935mm * Height 1320mm	Length 1875mm * Width 795mm * Height 1130mm	Length 1455mm * Width 671mm * Height 880mm Length 1510mm * Width 671mm * Height 900mm
maximum load	100Kg	100Kg	100Kg	75Kg
vehicle weight	76.5Kg	80Kg	70Kg	56.5Kg
motor type	72V High speed permanent magnet brushless DC motor	72V High speed permanent magnet brushless DC motor	72V High speed permanent magnet brushless DC motor	72V High speed permanent magnet brushless DC motor
Rated out put power	5000W/Max:  7500W	5000W/Max:  9500W	4000W/Max:  7500W	2000W/Max: 6000W
Torque	403N.m on Wheel	403N.m on Wheel	249N.m on Wheel	220N.m on Wheel
Motor maximum speed	6300/RPM	6300/RPM	7000/RPM	3300/RPM
Transmission ratio	1:8.96	1:8.96	1:9.3	1:5.7
power mode	Eco（1/2/3）  /Sport/R	Eco（1/2/3）  /Sport/R	Eco/Sport/Race	1/2/3
cooling method	natural cooling	natural cooling	natural cooling	natural cooling
Batteries	107*143*404mm  Weight ：16.5Kg	107*143*404mm  Weight ：16.5Kg	L*W*H: 160*143*404mm  Weight : 15.5Kg	L*W*H:140*140*330  Weight: 10.4Kg
Battery capacity	72V 35AH/2520WH	72V 35AH/2520WH	72V 30AH/2160Wh	72V 20AH/1440Wh
Battery charging time	3-6hours	3-6hours	3-6hours	4.5hours
cruising range	144km @Average speed 25km/h	144km @Average speed 25km/h	100km @Average speed 25km/h	55km @Average speed 39km/h
charger line voltage	AC 110-240V  50/60HZ	AC 110-240V  50/60HZ	AC 110-240V  50/60HZ	AC 110-240V  50/60HZ
charging power	432W	432W	432W	290W/360W
frame structure type	Double beam forged aluminum alloy /6061	Double beam forged aluminum alloy /6061	Double beam forged aluminum alloy /6061	Double beam forged aluminum alloy /6061
Handle bar	tapered aluminum 22mm	tapered aluminum 22mm	tapered aluminum 22mm	tapered aluminum 22mm
front shock absorber	φ45*775mm/Inverted adjustable/hydraulic danping structure/preloadedadjustable rebound	φ45*775mm/Inverted adjustable/hydraulic danping structure/preloadedadjustable rebound	φ44*750mm/Inverted adjustable/hydraulic danping structure/preloadedadjustable rebound	φ48-φ45*600mm（inverted and non-adjustable） spring hydraulic damping shock adjustable
rear shock absorber	L265mm/Hydraulic damping structure/rebound and downward pressure adjustable	L265mm/Hydraulic damping structure/rebound and downward pressure adjustable	L300mm/Hydraulic damping structure/rebound and downward pressure adjustable	L230mm/Hydraulic damping structure/rebound and downward pressure adjustable
front/rear damping travel	210mm/80mm	210mm/80mm	200mm/70mm	100mm/45mm
front brake	220mm/4piston hydraulic disc tyep	220mm/4piston hydraulic disc tyep	220mm/4piston hydraulic disc tyep	203mm/2piston hydraulic disc tyep
rear brake	220mm/4piston hydraulic disc tyep	220mm/4piston hydraulic disc tyep	203mm/4piston hydraulic disc tyep	203mm/2piston hydraulic disc tyep
Rims(front/rear)	1.6*19 spoke aluminum rim/1.85*1spoke aluminum rim	1.6*19spoke aluminum rim/1.85*19spoke aluminum rim	1.6*19 spoke aluminum rim/1.85*17spoke aluminum rim	1.4*14 spoke aluminum rim/1.6*12 spoke aluminum rim 1.4*12 spoke aluminum rim/1.6*10 spoke aluminum rim
Tire size(front/rear)	front70/100-19  rear80/100-19	front70/100-19  rear80/100-19	front70/100-19  rear2.75-17	front70-100/17  rear3.0/14 front60-100/14  rear2.75/12
chain	428H	428H	420	06BH
wheelbase	1290mm	1290mm	1245mm	1095mm
Height of handlebar	1090mm	1090mm	1050mm	875mm/895mm
ground clearance	310mm	310mm	325mm	220mm/240mm
seat height	890mm	890mm	840mm	635mm/654mm
Top speed	85km/h	85km/h	83km/h	75km/h
Acceleration	0-30km/h 1.6s     0-50km/h  3.8s      0-80km/h  11.6s		0-30km/h 1.8S    0-50km/h 3.6S     0-80km/h  12S	0-30km/h 1.8s     0-50km/h 3.6S    0-75km/h 9.6s
